Precision Heavy Duty Lathe Machine

Product Description

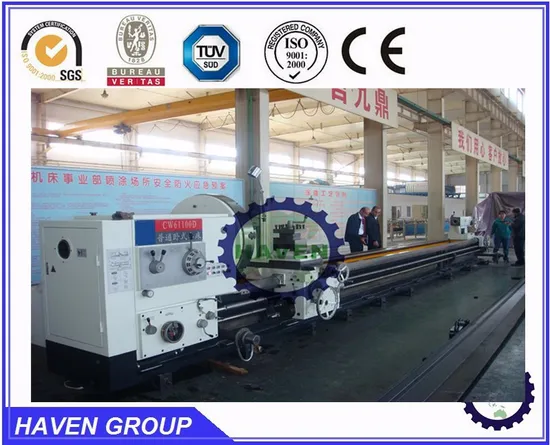

Precision Heavy Duty Lathe Machine
Main feature:
These lathes can perform to turn end-faces, cylindrical surfaces and internal holes of various parts as well as metric, inch, module and pitch threads. The top slides can be operated individually by power for cutting short taper surface. Long taper surface can be turned automatically through the compound movement combining longitudinal feed with the top slide feed, moreover, the machinery may be used for drilling, boring and trepanning.
Main specification:

SPECIFICATION			Model
			CW61100D CW62100D	CW61125D CW62125D	CW61140D CW62140D	CW61160D CW62160D
CAPACITY	Max.swing diameter over bed		1000	1250	1400	1600
	Max.swing diameter over crossslide		630	880	1030	1030
	Max.swing over gap		1450	1700	1850	2050
	Width of bed		755mm
	Max.length of workpiece		1000 2000 3000 4000 5000 6000 7000 8000 9000 10000
SPINDLE	Spindle nose		A15
	Sindle bore diameter		130mm
	Taper of spindle bore		Metric No.140#
	Range of spindle speed		3.15-315r/min 21kinds
FEEDS	Longitudinal feeds range		0.1-12mm/r 56 kinds
	Transversal feeds range		0.05-6mm/r 56kinds
	Rapid speed	Z-axis	3740mm/min
		X-axis	1870mm/min
		upper toolpost	935mm/min
	Metrec thread range		0-120mm 44kinds
	Inch thread range		3/8-28 teeth/iuch. 31kinds
	Modular thread range		0.5-60mm 45kinds
	Pitch thread range		1-56teech/iuch 25kinds
TAILSTOCK	Tailstock sleeve taper		Morse NO.6
	Tailstock sleeve diameter		140mm
	Tailstock sleeve travel		300mm
MOTOR	Main motor power		22kW
	Rapid motor power		1.5kW
	Coolant pump power		0.125kW

---
