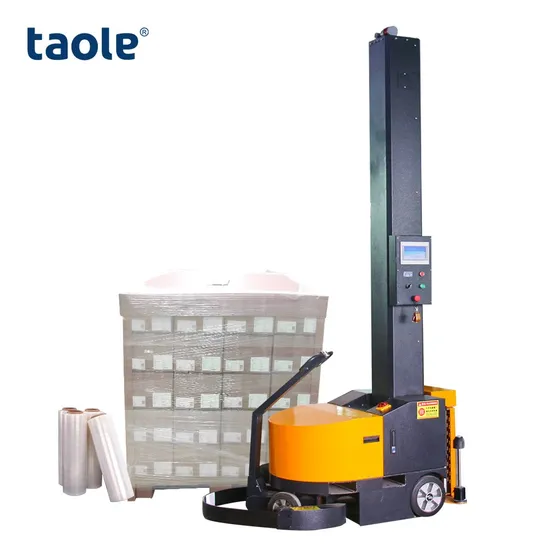

New Automatic Remote Controlled Mobile Robot Pallet Stretch Film Wrapping Machine

Product Description

Product Description TC-600 Pallet Wrapping Machine Mobile robotic stretch pallet wrappers are ideal for both standard and non-standard size pallet loads. The machine works by placing the guide tire against the pallet or if necessary against the load. To position the guide wheel, use the drive button on the handle of the machine until it is properly aligned.It is suitable for heavy goods or special-shaped pallets. The pallet is stationary on the ground. The mobile robot pallet wrapper automatically rotates 360 degrees around the pallet to automatically detect the height of goods. The wrapping height of the standard machine can reach 2.4m and the maximum customized height can reach 2.8m. The mobile robot pallet wrapper adopts PLC control system, and the performance of the whole machine is stable.
Main Figures 1. Photoelectric detect pallet height up to 2.4/2.8/3 meters
2. Rotating speed adjustable,accurate resetting after wrapping.
3. Die carrier up and down speed can be adjustable.
4. There has emergency switch in front of the machine to avoid run into the wrapping.
5. PLC control system will be more stable
6. Wrapping number of turns can be setting, bottom:adjustable 1-9 turns; up: adjustable1-9 turns.
Model parameter table

Model No.	TP-600 Mobile Robot Pallet Wrapper
Control panel	Touch screen
Control system	PLC
Max wrapping height(standard machine)	2.4 Meters (Optional for 2.8 or 3 meters Height)
Moving Speed	90m/min
Continuous working time	200-300 pallets Per Charge
Suitable for film roll	LLDPE Film Wide ≤500mm Inner diameter 76mm OD ≤ 250mm
Pallet size	Min L600*W600mm, Max no limit
Machine weight	450kg

Design
Detail images
Company Profile
SHANGHAI TAOLE CHINA CO., LTD was founded in 2004 and is a comprehensive enterprise specializing in the manufacturing, research and development, and design of automatic packaging equipment. We have a standardized office building and a modern production workshop of 2000 square meters. Since 2004, our machines have over 18 years of experience in both domestic and overseas markets, and have a high reputation in this industry. Capable of customizing packaging products according to customer requirements, providing complete packaging solutions from design to generation. Our engineering team continuously develops and updates equipment for the purpose of energy conservation, efficiency, and safety. Our mission is to provide customers with the best solutions and high-quality services through quality, service, and commitment.
Certifications&Exhibition
Packing shipping
FAQ Q1: What is the power supply of TC-600 Robot Pallet Wrapping machine?
A: Power Supply at 220V 50Hz with replace-able 120A lead-acid cell
Q2: How many models do you need and how can I choose?
A: Only TC-600 with optional height upto 2.4/2.8/3 meters.Please share your pallet specifications and weight. So we could evalute and present you with most suitable solution.
Q3: What is the delivery time? A: Standard machines are stock available or spare parts available which able to be ready in 3-7 days. If you have special requirements or customized service. Normally takes 10-20 days for fresh make after order confirm. |
Q4: What is the warranty period and after sales service? A: We provide 1 year warranty for machine except wearing parts or consumables. Optional for Video Guide, Online Service or local Service by third party. All spare parts available in both Shanghai and Kun Shan Warehouse in China for fast moving and shipping. Q5: What is your payment Teams?
A: We welcome and try multi payment terms depends on order value and necessary. Will suggest 100% payment against fast shipment. Deposit and balance % against cycle orders.
Q6: How do you pack it?
A: Small strapping machine tools packed in tool box and carton boxes for safety shipments by courier express. Heavy machines weight higher than 20 kgs packed in wooden cases pallet against safety shipment by Air or Sea. Will suggest bulk shipments by sea considering machine sizes and weight.
Q7: Will you able to do OEM & ODM service?
A: For TC-600 Robot pallet wrapper. We could do color as requirements but comes with MOQ 10 sets.
Q8: Are you Manufacture and what is your products range?
A: Yes. We are having factory for packing machines manufacture specially on pallet serving or bundling. Products like electric & Pneumatic strapping tools, pallet strapping machines for steel strapping or plastic strapping , pallet wrapping machines etc with standard and customized solutions. Please contact us anytime for any inquiry or more informations.

---
