Basic Info.
Application
Rice, Corn, Wheat, Soybean, Textile Machinery, Conveyer Equipment, Packaging Machinery, Food Machinery, Mining Equipment, Agricultural Machinery
Power Source
Tractor, Manpower
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008, CE
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Usage
Agricultural Products Processing, Farmland Infrastructure, Tillage, Harvester, Planting and Fertilization, Grain Threshing, Cleaning and Drying
Standard or Nonstandard
Standard
Feature
Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
Production Capacity
10000000 Tons Per Year
Product Description

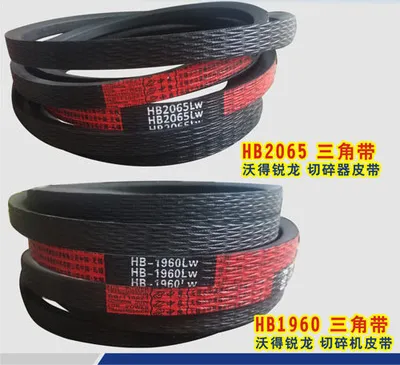

We can supply all kinds of V belts, transmission belts, drive belts for tractors, harvesters, conveyor machines, and other power drive equipment.
9J-5-1605 4SB1490 SB2995 SB2985 HB1530 HB2520 HC2445 SC1465 SB46 HC1850 HC3280 HB1900 HB2065 HB3020 HB2002 HB3174 SC1353 2SB1496 SB2756 SB1569 SB3156 4SB1520 HC2508 HB3532 HB2217 SC3685 HB2065 SB3190 HB2239
| Models | Transmission position | Qty per group |
| HB2065 | Cutter device transmission belt | 2 |
| SB46 | Reverse v belt | 1 |
| 2SB1496 | Gearbox-up shaft v belt | 1 |
| HC1850 | Grain discharge v belt | 1 |
| 9J-5-1605 | Walking v belt | 1 |
| SB2756 | Winder belt | |
| SB3190 | Conveyor groove v belt | 2 |
| 4SB1520 | Blower transmission belt | 1 |
| HC2508 | Fan belt | 2 |
| SB3570 | Auger v belt | 1 |
| HB2239 | Sieve screening v belt | 1 |
| SC3685 | Cutter device v belt | 1 |
All kinds of harvester V belts can be supplied, please feel free to contact us for further information.
RUBBER INDUSTRIAL V- BELT FEATURES:
1. High quality
2.Excellent heat and oil resistance
3.Excellent abrasion resistance
4.long life
5.have the complete mould of every size(A,B,D,C,O(M)/Z,SPA,SPB,SPC.3V.5V.8V.AA,BB,CC,and Banded belt and agricultural belt).
SIZE:
Production Type
| Top Width
| Pitch Width
| Height
| Angle
| Length Range(inch/mm)
|
O(Z)
| 10
| 8.5
| 6
| 40°
| 16"-140"/408mm-3556mm
|
A
| 13
| 11.0
| 8
| 40°
| 16"-315"/408mm-8001mm
|
B
| 17
| 14.0
| 11
| 40°
|
|
C
| 22
| 19.0
| 14
| 40°
| 40"-825"/1016mm-20955mm
|
D
| 32
| 27.0
| 19
| 40°
|
|
E
| 38
| 32.0
| 23
| 40°
|
|
Type
| Tensile-Strength
KN ≥
| Reference Force Extension
%≤
| Adhesive Strength Of The Cord (KN/m)≥
| Adhesive Strength Between Cloth And TopRubber(KN/m)≥
|
Z
| 2.0
|
7.0
| 13.0
| _
|
A
| 3.0
| 17.0
|
B
| 5.0
| 21.0
|
2.0
|
C
| 9.0
| 31.0
|
D
| 15.0
| 31.0
|
E
| 20.0
| 31.0
|
Production Type
| Top Width
| Height
| Angle
|
HAA
| 13
| 6
| 40°
|
HBB
| 17
| 8
| 40°
|
HCC
| 22
| 11
| 40°
|
Production Type
| Top Width
| Height
| Angle
|
AJ
| 13.6
| 10
| 40°
|
BJ
| 17.0
| 13
| 40°
|
CJ
| 22.4
| 16
| 40°
|
DJ
| 32.8
| 21.5
| 40°
|
>>
