High Capacity Cold Peanut Oil Pressers Hot Oil Production Machine

Product Description

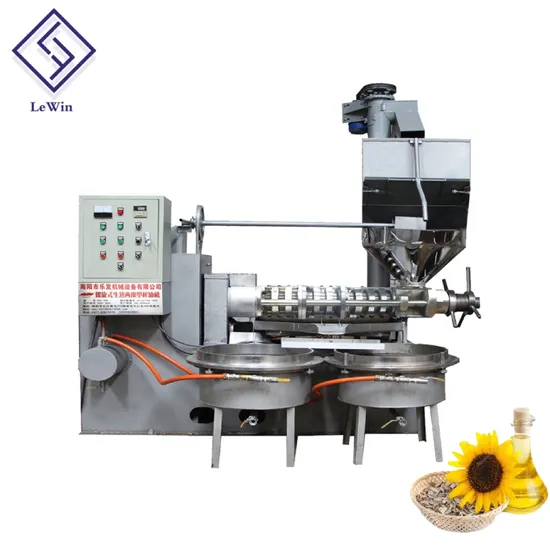

6YL-130 A screw oil press machine cold pressed oil machine for sesame

Working principle

The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.
Product Parameters

Model	6YL-120	6YL-130 A	6YL-150	6YL-160	6YL-180
Weight	1200 kg	1650 kg	1800 kg	1900 kg	1980 kg
Vacuum power	1.1 kw	1.1 kw	2.2 kw	2.2 kw	2.2 kw
3phase	15 kw	18.5 kw	30kw	30 kw	37 kw
Squeezer speed	100-130	100-130	100-130	100-130	100-130
Capacity(kg/h)	120-160	160-280	220-450	300-600	400-750
Dimension(mm)	2000*1600*2700	2600*1600*2700	2550*1800*2700	2650*1900*2700	2700*2000*2700

Product Description

The oil press machine is a new research improvement product. It can use to press Copra, rapeseed, peanuts, soybean, sesame,sunflowerseeds and other plant oil materials. This kind of machine adopts micro-electrical control, filter system, multi-stage press and cold and hot press. The product oils the clean oil after filtering, it can directly to use. The machine is the most ideal equipment for individual processing.
6YL series spiral oil press is mainly composed of 7 major parts of screw axis, press cage, feed mechanism, cake yielding mechanism. transmission system, electric control part and vacuum filter part. All the parts are assembled on the frame and screwed as a whole.
Detailed Photos
Parts of high quality oil presser:
1. Energy Saving: The electric power can be reduced by 40% under the same output.
2. Labor Saving: 60% labor can be saved under the same output.
3. Widely Usage: The machine is multi-function. It can process more than 20 kinds of oil crops.
4. Pure Oil: Vaccum filter can filter the residue and ensure the oil quality.
5. Small Area Covering: 10 ~ 20 m2 can meet the production needs
