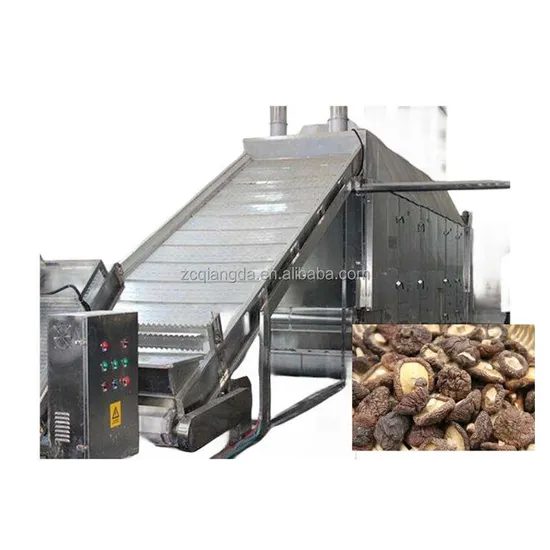

Qd- Gw High Quality Food and Dry Red Pepper Drying Machine Dried Fruit Machine Drying Equipment Production Line

Product Description

Working principle The material is evenly spread on the mesh belt by the feeder and moved in the fuselage by the rotating device. The dryer is composed of a number of units, each unit independent circulation of hot air, hot air from the bottom up through the net belt, to complete the transfer process of heat and quality, take away material moisture, so as to achieve the drying process. For batch drying needs, continuous mesh belt dryer from feeding, drying, discharging all mechanical operation, reduce labor needs; Different temperature zones are set according to the optimal drying process requirements of the material to achieve the best drying effect. Product features
1, assembly line production, large capacity; 2, according to the demand set temperature zone, drying quality is higher; 3, automatic equipment, reduce labor demand during drying, reduce production costs; 4, automatic control, no need for special duty; 5, wide range of application, can support biomass particles, coal/wood, natural gas, steam, air energy, electricity and other heat sources.
Multi-layer dryer is suitable for large-scale production, low drying rate of difficult drying materials, equipment structure is compact, small footprint, simple operation, easy maintenance, stable operation. It can be designed into different hot air circulation drying forms according to the drying characteristics of the material. With the technological progress of enterprises and the increase of product technology content, multi-layer belt dryers have the ability to meet large-scale production, diversification, centralized control and continuous production. It has the advantages of high efficiency, energy saving and easy management.

model/unit	XCD-0.8-8	XCD-1-10	XCD-1.2-15	XCD-1.5-20	XCD-2-30
number of plies	3	4	5	5	7
band width/m	0.8	1	1.2	1.5	2
Single tape length/m	8	10	15	20	30
Length of drying section/m	24	40	75	100	210
Ply thickness/mm	10~80
operating temperature/	50140
effective drying surface/m²	19.2	40	90	150	420
drying intensity/KgH20/h	96288	200600	4501350	7502250	21006300
boundary dimension/m	9x1.2x1.5	11x1.5x2	16x1.8x2.5	21x2x2.5	32x2.6x3.5

WORKING PRINCIPLE: The airenergy heat pump is the latest generation of energy-saving and environmentally friendly heating equipment. It operates on the reverse Carnot principle. It only needs to use relatively little electrical energy to drive the compressor, absorb a large amount of low-temperature heat energy in the air, and then compress it through the compressor to turn it into high-lemperature heat energy, and then transfers the high-temperature heat energy to the heat exchanger to heat the air. Therefore, its energy consumption is very low, the efficiency is very high, the speed is very fast, the safety performance is first-class, and it does not cause pollution, and can continuously provide clean hot air at the appropriate temperature.
SCOPE OF APPLICATION: As a heat source, air energy heat pumps are widely praised in the market. The power consumption is much lower than traditional drying energy. Itis plug-in and easy to operate. Itis widely used in meat products, melon seeds and peanuts, Chinese medicinal materials, seeds, feed, and fruits. dehydrated vegetables, wood, tobacco and other agricultural and sideline products processing industries. The high-temperature heat pump dryer provides a brand-new solution for reducing material drying costs and high-quality drying, and has strong market competitiveness.
