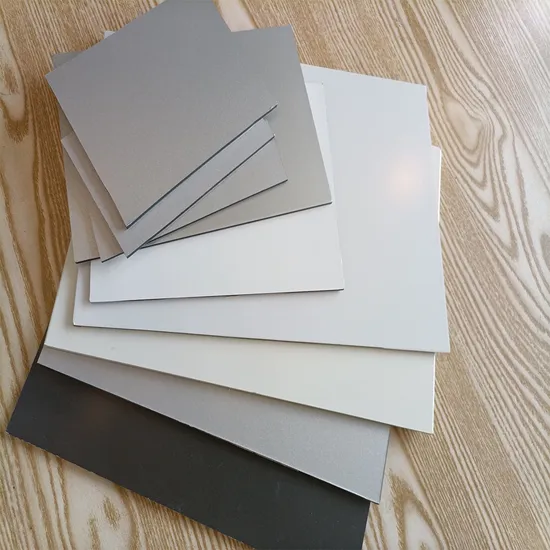

Aluminum Composite Panel ACP for Building Materials Factory

Product Description

Short Description:
Aluminum composite panel have polyester aluminum composite panel and PVDF aluminum composite pane.
Polyester aluminum composite panel consists of aluminum layers on both sides with a polyethylene core. It's coated with a polyester lacquer. The low weight sheet material can be easily fabricated,making it an ideal material for creative applications both indoors and outdoors.
PVDF aluminum composite panel consists of two layers of aluminum skin sandwiching a PE core in a continuous extrusion process. The outer surface of panel is coated with PVDF Kynar500 fluorocarbon coating to provide a long lasting,durable finish for wall cladding applications.
ACP structure:


Features:
·High Mechanical Strength & Toughness
·Anti-Fungus & Super Peel Strength
·Both Rigid & Flexible
·Low & High Temperature Resistance
·Superior Weathering Resistance
·Light Weight & Easy For Process
·Excellent Fire- Resistance Property
·Coating Evenness & Diversified Colors
·Easy For Maintenance & Impact Resistance
·Quickly Installed & Excellent Self-Cleaning Character

Specifications:

Product	Aluminum Composite Panel, ACP
Aluminum skin	0.08/0.1/0.12/0.15/0.18/0.21/0.25/0.30/0.35/0.4/0.45/0.5mm
Panel Thickness	2-8mm
Size	1220*2440mm 1250mm*3050mm 1500*3050mm 2000*3000mm Customized
Color	60 colors, special colors available upon request
payment	L/C, T/T, Western Union, MoneyGram, Paypal
MOQ	100-200PCS/ each item
Delivery	10-15days after confirm your order

Technical Data:

Color different	ΔE<=2.0
Pencil hardness	>=2H
Coating adhesion(>=1grade for 10*10mm2 gridding test)	Grade 1
Impact test for paint(20KGNaN impact-paint no split for panel)	No split
Peeling strength/ stripping strength	5N/mm
Resist solvent( 100times with Dimethy benzene without change)	No change
Coefficient of linear Thermal Expansion ( 100ºC temperature difference)	2.4mm/m
Detergent resistance (3%)	No change
Chemical resistance( 2%HCI or 2% NaOH test in 24 hours -No change)	No change
Boiling water resistance( 2 hours without change)	No change

ACP Color chart:
ACP Application:
1. Wall curtain,Cladding and Fecade
2. Roof edges and Parapet wall
3. Dado,Separation wall and Partition
4. Interior wall,Ceiling,Bathroom, Kitchen and Balcony
5. Advertisement boards, display platforms and signboards
6. Column covers and Beam wraps
7. Industrial materials, vehicle and boat materials

Packing and Delivery:
Our Advantages and Service: Advantage:
1.Free OEM production for all customers.
2.Free to make color chart for all customers.
3.15-20 days fast delivery,high efficiency,high quality
4.Purchase more than 60,000 SQM of ACP per year return 2%~ 3%,our product is worth to buy again.
5.Provide all installation and auxiliary materials,remove your trouble at home.
Service:
1.PVDF Coating ACP: We offer 20 years guarantee. 2.PE Coating ACP: We offer 5-8 years guarantee. 3.Process: If the quality meet any problem,pls provide us the photos which describe the problem. 4.Solutions: a. If the problem is small,we will send the same quantity free in new shipment. b. If the problem is big,except the goods value,we will pay for all installation charges for these problem panels. 5.Claim: Pls contact our Aftersale service department within 60 days after you receive the exterior decorative wall finishing ACP.
FAQ: Q1.What's your payment terms?
A1.Normally speaking, we have two payment terms: One is TT, another one is LC at sight.
Q2.What's the package you always use?
A2:We have two kinds of package ways: One is bulk package which means we will put the panels directly in the container;
Another one is wood boxes package. Pls kindly check the attached photos for these two package ways.
Q3.Do you have any test certificates?
A3:Yes, stable good quality is key for long time business cooepration.
Factory have passed ISO,CE,SGS, etc .
Q4.Do you service OEM?
A4: Yes, OEM accept. Just need to give us yours logo, we will send some protective film design for your choose
Q5.Do you offer sample?
A5: Yes, samples are available if you are interested in our products.

---
