Eaton Bussmann series CCP2 Compact circuit protector CCP2-1-30CC

Product Details

Product Description

Product Description

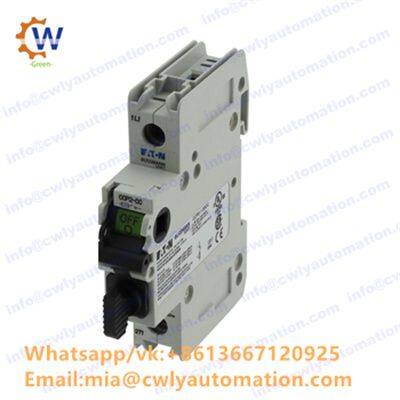

Eaton Bussmann series CCP2 Compact circuit protector CCP2-1-30CC
Description
The revolutionary next generation Bussmann™ series Compact Circuit Protector (cat. no. CCP2) fused disconnect switch is 3/5 the
footprint of a traditional fusible switch and provides up to a high 200 kA Short-Circuit Current Rating (SCCR) to help improve panel and assembly SCCR.
The 35 mm DIN-Rail mount CCP is available in a variety of configurations to meet many application needs including rotary operation.
Application flexibility is extended with an optional multi-wire lug kit,with finger-safe shrouds, that provides three additional wire ports oneach pole for power distribution applications.
Other accessories include NO/NC auxiliary contacts that easilyintegrate into many monitoring systems.Front and side rotary operated versions are easily applied for
through-the-door or through the left or right side operation to enhance safety.
Please contact me get more information
Email:Mia@cwlyautomation.com
VK/Whatsapp/Telegram:+8613667120925
Website:
Features
• Extremely compact (18 mm wide per pole ) design
• High SCCR up to 200 kA (UL Class CC)
• Disconnect rated for load isolation
• Full voltage rated up to 600 Vac or 80 Vdc
• UL 98 Listed Class CC version is horsepower rated and suitable
for branch circuit protection and disconnect
• Open fuse indication
• Standard local open fuse indicating light for each pole
• IP20 finger-safe with 10 AWG (6 mm2
) or larger wire (box lug
terminals only)
• Built-in switch interlock prohibits removing the fuse under load
• Padlockable handle for lockout/tagout
• 4 mm lock for switch only
• 1/4” lock for rotary operated switches
• Rotary operated versions provide for through-the-door and
through-the-side operation flexibility and enhanced safety with:
• Right front switch operation
• Left front switch operation
• Right side switch operation
• Left side switch operation
• Optional selector, pistol and NFPA 79 compliant handles available
for use with rotary operated versions
• Multi-wire lug kit with terminal shrouds allows for power
distribution to multiple loads. Each lug has three ports rated for
single and dual wires (see lug kit in accessories for conductor and
torque details).
Please contact me get more information
Email:Mia@cwlyautomation.com
VK/Whatsapp/Telegram:+8613667120925
Website:
Catalog numbers
CCP2-(poles)-30CC
CCP2-1-DCC
CCP2R-(pole)-30CC C
CCP2R-(pole)-30M
CCP2RL-(pole)-30CC
CCP2RL-(pole)-30M
CCP2S-(pole)-30CC
CCP2S-(pole)-30M
CCP2SL-(pole)-30CC
CCP2SL-(pole)-30M
CCP2-1-30CC
CCP2-2-30CC
CCP2-3-30CC
CCP2R-2-30CC
CCP2R-3-30CC
CCP2RL-2-30CC
CCP2RL-3-30CC
CCP2S-2-30CC
CCP2S-3-30CC
CCP2SL-2-30CC
CCP2SL-3-30CC
CCP2-1-30M
CCP2-2-30M
CCP2-3-30M
CCP2R-2-30M
CCP2R-3-30M
CCP2RL-2-30M
CCP2RL-3-30M
CCP2S-2-30M
CCP2S-3-30M
CCP2SL-2-30M
CCP2SL-3-30M

---
