Powder Mixer with Stainless Steel Construction

Product Description

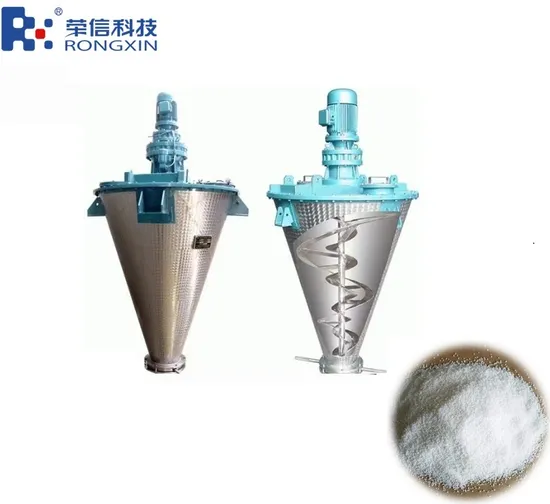

The Double Screw Conical Mixer, featuring an innovative design with two asymmetrical spirals on an internal cantilever, showcases unparalleled efficiency. It not only spins with self-rotation around its own axis but also engages in a synchronized revolution, driven by its cantilever, around the central axis of the vessel. This sophisticated mechanism generates four distinct types of directional forces. As these spirals rotate, they expertly lift the material upwards, while the cantilever's gradual revolution propels the material in a seamless circular motion. This harmonious rotation and revolution draw the material inward and disperse it outward, creating an elegant circular path. The upwardly lifted material streams elegantly converge at the center, flowing gracefully downwards to fill the void at the bottom, thereby orchestrating a comprehensive circulating flow.
Product Features
1. Cantilever Shaft Structure, ingeniously designed to ensure the bearings' end does not contact the material, thereby enhancing durability.
2. The minimal gap between the agitator blades and the container wall is cleverly engineered to prevent material adhesion,
3. A standardized agitator drive box guarantees consistent equipment operation while lowering maintenance expenses.
4. Easy-Cleaning: Engineered for swift and efficient cleaning between production batches;
5. Durable Construction: Crafted with high-strength materials for lasting reliability and performance;
6. Wide Application: Versatile usage across various industries including pharmaceuticals, food processing, chemicals, and cosmetics;
7. Adheres to rigorous standards for complete discharge of mixed materials, ensuring no residual remains;
8. Gentle mixing method preserves the integrity of fragile materials like delicate crystalline substances;
9. Energy-efficient mixing is particularly ideal for facilitating material chemical reactions;
10. Innovatively designed arched top cover eliminates sanitary dead corners, streamlining the cleaning process;
11. Outfitted with a spherical discharge valve for ensuring even more thorough and stable material discharge.
Technical Parameters

Device Model	DSH-0.3	DSH-0.5	DSH-1	DSH-2	DSH-3	DSH-4	DSH-6	DSH-10	DSH-15	DSH-20	DSH-30
Effective Volume(m³)	0.18	0.3	0.6	1.2	1.8	2.4	3.6	6	9	12	18
Maximum Batch Capacity(Kg)	200	300	650	1200	1800	2500	3600	600	9000	1200	1800
Revolution/Rotation(r/min)	3.5/12	3.5/12	3/78	3/78	3/78	1.8/65	1.6/65	1/65	1/65	1/44	1/44
Drive Power(kW)	3	3	4	5.5	7.5	11	15	18.5	22	37	45
Equipment Weight(Kg)	500	600	1200	1500	2300	2520	3700	3980	4500	5500	6800
D	φ950	φ1150	φ1580	φ1950	φ2170	φ2280	φ2560	φ3000	φ3450	φ3770	φ4100
H	2060	2350	2840	3500	3760	4360	4800	5900	6680	6700	7500

Product DisplayProduct Structure
Application
The Double Cone Mixer is adeptly applicable in diverse industries such as powder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical and medical fields, as well as food industry.
