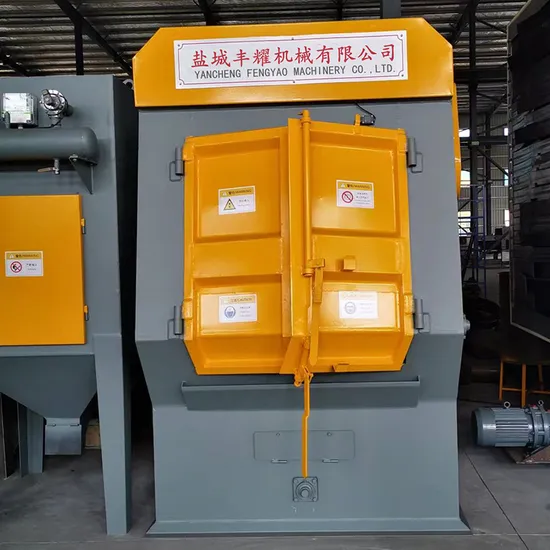

Fyq3210 Tumble Crawler Belt Type Shot Blasting Machine

Product Description

FYQ3210 tumble/crawler belt shot blasting machine is designed as an ideal processing solution for steel, aluminum, brass, zamak, cast iron or bronze parts, Pressed parts in steel or brass, Forged parts, Heat-treated parts, Springs, Various mechanical parts, and for deflating thermoset plastics.
Q32 series tumble belt type shot blasting machine has the advantages of advanced design, reasonable structure small energy consumption and high efficiency.
The crawler shot blasting cleaning machine is suitable for surface cleaning of various parts. All kinds of metal castings are cleaned with sand sticking on the surface, rust removal on the surface of ferrous metal parts, blunt burrs and burrs on the surface of stamping parts, surface treatment of forgings and heat treatment workpieces, as well as removal of oxide scale on the surface of springs and grain refinement on the surface, etc. It can be realized by the shot blasting strengthening process of this series of equipment. Its application range is extremely wide, mainly including foundries, heat treatment plants, electrical machinery factories, machine tool factories, bicycle parts factories, power machinery factories, auto parts factories, motorcycle parts factories, non-ferrous metal die-casting factories, etc. The blasted workpiece can obtain a good material color, and can also become the previous process of blackening, blueing, passivation and other processes on the surface of metal parts. At the same time, it can provide a good base surface for electroplating, painting and other finishes.
After shot blasting by this machine, the workpiece can reduce tensile stress and refine the surface grains, thereby strengthening the surface of the workpiece and increasing its service life. The shot blasting machine has low working noise, less dust and high production efficiency. At the same time, the projectiles can be automatically recycled, reducing material loss and reducing costs. It is an ideal surface treatment equipment for modern enterprises.

Item/type	FYQ324	FYQ326	FYQ328	FYQ3210
End disc diameter	400mm	600mm	800mm	1000mm
Turbine	4kw	7.5kw	11kw	11kw
Max shot blasting capacity	50kg/min	150kg/min	220kg/min	250kg/min
Dust removal fan	1.5kw	2.2kw	3kw	4kw
Tumble belt motor	0.75kw	1.5kw	2.2kw	3kw`
Elevator motor	0.75kw	1.5kw	2.2kw	2.2kw

---
