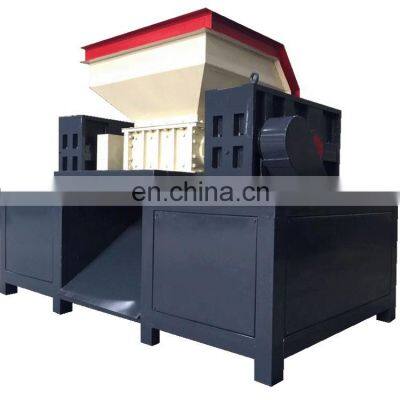

Metal shredder machine /metal crushing waste steel,aluminum and iron

Product Description

Product Description
Metal shredder machine /metal crushing waste steel,aluminum and iron
Product Description
Introduction of Metal shredder machine:
Metal shredder machine is a newly developmental energy saving equipment, which is the most advanced crusher to crush the waste of plastics, rubbers, wood, paint bucket, appliance shell, giant tire, nylon material, fiber and so on. The users can adopt different allocations according to the materials species, scale, and the requirements of the finished production. We improved our technology constantly based on combining the specific practical application of both domestic and overseas clients.
Working principle of Metal shredder machine:
The basic principle of gear motor driving motor to generate power to make the shaft extrude. The main principle is putting a filter-type conveyors at the discharge port, with high speed and torque motor driven rotor hammer on the host hitting into the cavity of the substance to be crushed, the space between the liner and the hammer through the formation of the material to be broken, which can be crushed into specifications detritus.
Specification of Metal shredder machine:

type	400	500	600	800	1000	1200	1500	1800	2000
Power(kw)	5.5*2	7.5*2	15*2	22*2	37*2	45*2	55*2	75*2	90*2
Capacity (t/h)	0.2-0.3	0.4-0.5	0.6-0.8	1-1.2	1.3-1.5	1.5-1.7	1.7-2	2-2.5	3
Blade number	16	16	24	32	22	28	40	44	50

According to the different materials, the power of the motor and the size of the cutter plate can be customized.
Advantage of our Metal shredder machine:
1. Double shaft and low rpm, high torque, high capacity, effectively crushed, energy saving, low noise, widely application.
2. Complete machine modular design, it is convenient to maintain and replace.
3. Blade and gasket is made by high rigidity and hard-wearing special alloy steel from overseas, after surface treated, it will have a good performance of cutting. In addition, we use the titanium plating treatment, which will make the blade more hard, wearable and corrosion, the service life will be extended for 2 times.
4. Shafts and blade combine with the spline-type structure, transmitted torque is large, not easily deform, and it’s convenient to disassemble, repair.
5. Motor and gear reducer use the domestic and international well-known brands, which makes sure the dynamical system stabilize.
6. Bear block use the patented pieced convenient detachment, which can be rapidly disassemble.
7. Special sealing structure can efficiently prevent fragementation into the gearbox, handling the liquid material can protect the bearing and gear.
8. Multiple protection system.
Spare parts of Metal shredder machine:
The blade is the most important part of the shredder. The texture of the blade and the your raw material determine the service life of the blade. Commonly used steel: D2 (Cr12Mo1V1), DC53 (Cr8Mo2SiV), H13 (4Cr5MoSiV1), SKD11(Cr12MoV), etc.
Available materiala and final products of Metal shredder machine:
Many customers have visited our company:
Packaging & Shipping
Package of Metal shredder machine:
Firstly, we use plastic film to protect the machine, then we use the wooden case to package it.
Our Services
Pre services:
1. We will introduce the most suitable machine to clients.
2. Answer clients’ questions patiently until clients think they have solve their problems.
3. Pick clients up to our factory to look over the machine and will improve our machine according to clients’ requirements.
After services:
1. Communicate with clients about details of the machine.
2. Choose the most convenient port to clients to delivery the machine.
3. Company can send technical data for guiding to install debug the
machine. We also can provide 24-hour telephone or message service until solve problems during the making and transporting process in time.
Company Information
Our company are professional in Double shaft waste tire shredder. We can attach different clients’ different needs. We are a productive entity enterprise. We have improved it according to market trendy gradually. We have a strong technical team to develop new products constantly. Except that we also have carbonization furnace, pellet machine, nail making machine, crusher, dryer and plastering machine etc. Welcome to our factory!
FAQ
1. --What material can we use?
--You can use the waste of plastics, rubbers, wood, paint bucket, appliance shell, giant tire, nylon material, fiber and so on.
2. --How about the crushing ability?
--The capacity is 200-3000kg per hour.
3. -- What material does the blade use?
--The blade uses D2 (Cr12Mo1V1), DC53 (Cr8Mo2SiV), H13 (4Cr5MoSiV1), SKD11(Cr12MoV), etc.
If you are interested in our machine,we can customized accroding to the your requirements.Welcome to our factory, we will provide you the best machines with the lowest price!
Contact information:
Whatspp: 13298311367
Wechat: limengru13298311367
QQ:674017191
