China Manufacture 0.9mm Sm Fiber 1X32 PLC Splitter Mini Type with Sc/APC Connector.

Product Description

Product Description
★Description

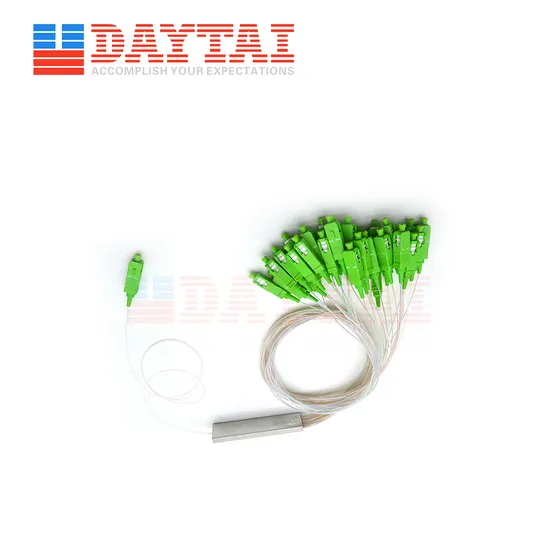

1x32 PLC Splitter Mini type,SM fiber,fiber optic cable OD:0.9mm pigtail,1m length, with SC/APC connector.
★Features
⊙FTTH
⊙Reliable
⊙Monitoring
⊙Smaller size
⊙CATV System
⊙Good Uniformity
⊙Network Protection
⊙Low Polarization loss
⊙Access/PON Distribution
⊙Not Sensitive to wavelengths
Product Parameters
★Optical performance
Test can be performed on any channel to meet the following requirement:

Category		Specification		Remarks
Working Wavelength		NM	1260~1650
Test Wavelength		nm	1310&1490&1550
Insertion Loss	exclude connector	dB	≤4.0
	With connector	dB	≤4.3
Channel Uniformity		dB	≤0.6
Polarization Dependent Loss-PDL		dB	≤0.2
Directivity		dB	UPC≥50;APC≥55	With connector
Return Loss		dB	UPC≥50;APC≥55	With connector
Operating Temperature		ºC	-40~+85
