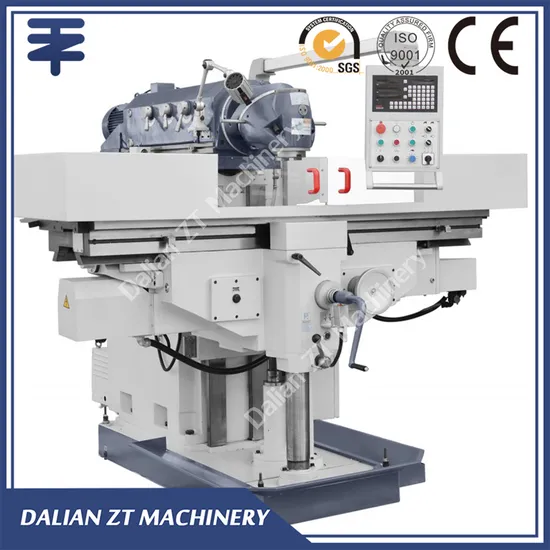

Large Vertical RAM Milling Machine X5746 X5750A X5750

Product Description

Main Feature 3 axes with ball screws, high precision 3-axis feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate C Mechanical change speeds in head stock, powerful milling
D Table with an extra supporting column, big load, high accuracy
E It can mill any angle surface through front half-sphere by swiveling milling head

Specifications	Unit	X5746	X5750
Table size	mm	460*1235	500*1600
T-slots(NO./width/pitch)	mm	5*18*80	5*18*80
Table travel (X/Y/Z)	mm	900*650*450	1200*700*500
Swivel angle of milling head	-	360°	360°
Spindle taper	-	ISO40	ISO50
Spindle speed range	r.p.m	(27)30-2050	(27) 30-2050
Table feed(X/Y/Z)	mm/min	10-1000/10-1000/6-640	10-1000/10-1000/5-500
Table rapid speed		2200/2200/1100	2200/2200/1100
Distance between spindle nose and table surface	mm	58-508	50-550
Distance from spindle center line to column	mm	20-670	45--745
Main motor power	Kw	5.5	7.5
Feed motor	Kw	AC servo motor X/Y:15NM;Z:18NM	AC servo motor X/Y:15NM; Z: 18NM
Max load	Kg	800	1800
Overall size	mm	2570x2035x1990	2625*2460*2080
weight	kg	3600	4200

PACKING, DELIVERY AND FIXING
CUSTOMERS' VISITING & EXIBITIONS
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
14 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.

---
