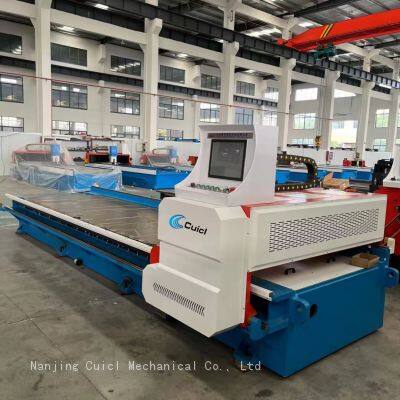

Cuicl High Quality CNC Slot Shaping/Planing/Metal Plate Grooving/Recessing Machine CE Approved in Good Price Wholesale

Product Details

Product Details

Product Description

Product Description
grooving machine
Application
Grooving is an auxiliary process for bending metal or non-metal materials.
V-grooves are cut out using special equipment and tools at the bending line where the metal or non-metal material needs to be bent, making the material easy to bend and forming and the outer R of the bending angle can be minimized.
Then, the material is bent by a bending machine or manually.
This method completes the processing and meets the product appearance requirements.
The depth, width and angle of the V-groove can be guaranteed by the feed amount and shape of the planer during planing.
Technical parameters

Length
3200mm
4000mm
5000mm
6000mm
1
Thickness (mm)
0.3-6
0.3-6
0.3-6
0.3-6
2
Length(mm)
3200
4000
5000
6000
3
Width (mm)
850-1500
850-1500
850-1500
850-1500
4
Grooving speed(m/min)
15-60
15-60
15-60
15-60
5
Grooving Area (mm)
2.25
2.25
2.25
2.25
6
Plate speed (m/min)
5-0.5
5-0.5
5-0.5
5-0.5
7
Y axle Minimum unit
0.01
0.01
0.01
0.01
8
Y axle Minimum positioning accuracy
0.05
0.05
0.05
0.05
9
Z axle Minimum unit
0.01
0.01
0.01
0.01
10
Z axle Minimum positioning accuracy
0.02
0.02
0.02
0.02
11
X axle Motor power(kw)
W=2
W=2
W=2
W=2
12
Y axle Motor power(kw)
W=3
W=3
W=3
W=3
Please contact us for more details
