High Accuracy High Automation Level Cutting Machine Saw Machine for Laminate Flooring Line

Product Description

Equipment parameters

1220mm*2440mm
	Transverse Saw (3 Pieces saw)	Longitudinal Multi Rip Saw
Table size (mm)	1220 * 2440	1250 * 3500
Working width (mm)	2500	1250
Working thickness (mm)	6~15
Feeding motor (KW)	1.5
Feeding speed (m/min)	15~30
Power of cutter shaft (KW)	3kw * (2~4)	15
Qty of saw blade (pcs)	2~4	4~10
Size of saw blade	Φ300 * Φ40
Height of working table (mm)	900
Dust hole diameter (mm)	Φ120

Products Description

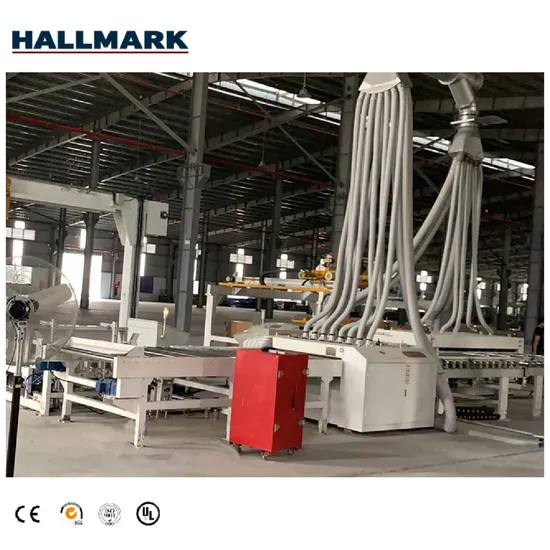

Laminate Flooring Cutting Machine
Laminate Flooring production line cutting machine is used to cut board into some several small boards.First
cut a big board into two pieces by transverse saw, and then through steering roller conveyor feed into left or
right or both sides multi rip saw to cut into required specifications small boards.
Equipment details list
Packing & Delivery
Certifications
Exhibition experience
FAQ


1. Rich experience and professional design We have 15 years experience in flooring industry,also has many years exporting experience. Each equipment location,passage will be designed reasonably to meet safety production. 2. Competitive price HallMark has own factory,with the same configuration,the price is competitive.And we are familiar with the Chinese market,oursuppliers provide high-quality cost-effective accessories. 3. Timely after-sale service We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installationand debugging of the flooring production line until it runs well,and asked for quick r esponses to customer questions within 8 hours. 4. One-stop solution HallMark provide one-stop service, including market analysis and professional technical consultation,whole SPC flooring productionline, raw materials ,equipment installation, personnel training,Professional after-sales service team,Renovation of old equipment,make turnkey projects. 5. Quality control Strict quality control of equipment in production and before leaving the factory, and a complete quality management system for purchased parts.Customers are always welcome to make videos or come to the factory to know the production status. 6. Customized HallMark's engineer team will design the layout according to customer's factory space and production requirements.

---
