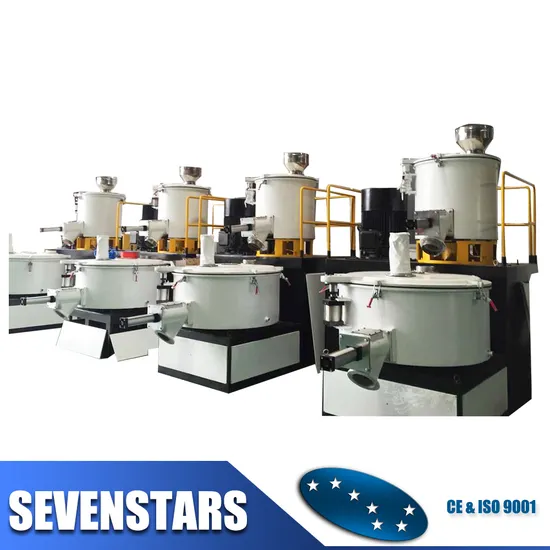

Plastic High Speed PVC Powder Turbo Cooling and Heating Mixer Unit

Product Description

Description of PVC Mixer:
1. Mixed materials are made by negative pressure mixed principle
2. The electrical instruments are all well-known imported appliances with PLC programmable control
3. High degree of automation and speed mixing
4. The blade was made by stainless steel pressure and passed the static and dynamic balance test
5. Especially the coolant blade ued abroad advaned spiral mixing structure, the whole container has no dead angle, cooling speed and discharging clean.
6. Large volume
7. The PVC mixer is for mixing PVC powder, CACO3 and other addictives. This equipment is widely used in PVC pipe and profile production.
8. The PVC mixer is composed of high speed mixer (hot mixer), cooling mixer and control cabinet.
9. We use 6-8mm stainless steel SUS304 for the internal wall construction. It will guarantee the mixer could use for long time under the high friction.
Main Technical Parameters ( Vertical Cooler) for your reference:

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total volume (L)	100/200	200/500	300/600	500/1000	800/1600
Effective Volume (L)	65/130	150/320	200/360	375/650	600/1024
Rotating Speed (RPM)	650/1300-180	475/950-87	475/950-87	430/860-60	357/714-50
Mixing time (Min.)	8-10	8-10	8-12	8-10	8-12
Motor power (KW)	14/22-7.5	30/42/11	40/55/11	55/75/15	83/110/22
Overall dimension(mm)	2500*2000*2200	4580*2240*2470	4800*2640*2480	5600*3000*3100	6230*4230*4480
Weight(kg)	2500	3600	4500	5800	8300

---
