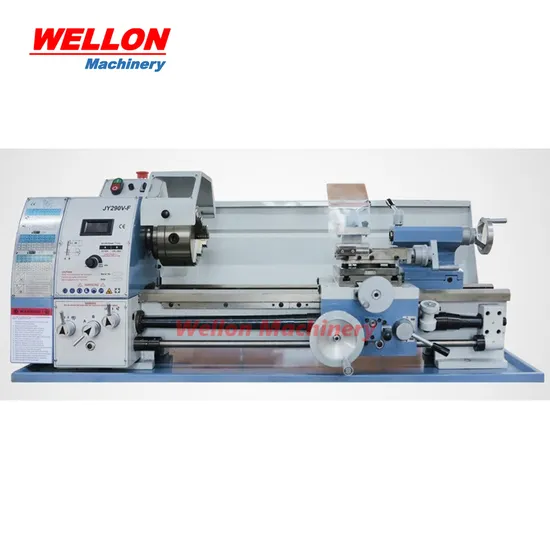

Precision Bench Lathe (Universal Bench Lathe Machine JY280V-F)

US$1,000.00-2,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
JY280V-F
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Spindle Bore
26mm
Transport Package
Ply Woodcase
Specification
CE ISO9001 ROHS
Trademark
WELLON
Origin
Tengzhou, China
HS Code
8458190000
Production Capacity
100sets/Month

Product Description

Products Description:
V-way bed is hardened and precision ground.
Super width bed way gets more capacity.
Independent leadscrew and feed shaft.
Power cross feed function.
Automatic feed and threading are fully interlocked.
T-slotted cross slide.
Right & left hand threads cutting is available.
Tailstock can be offset for turning tapers.
Tolerance test certificate, test flow chart included.
Model JY280V-F
Distance between centers 700mm
Swing over bed 280mm
Swing over cross slide 165mm
Taper of spindle bore MT4
Spindle bore 26mm
Number of spindle speeds 6/variable speed
Range of spindle speeds 125-2000/50-2000rpm
Range of cross feeds 0.02 -0.28mm /r
Range of longitudinal feeds 0.07 -0.40mm /r
Range of inch threads 8-56T.P.I
Range of metric threads 0.2 -3.5mm
Top slide travel 50mm
Cross slide travel 140mm
Tailstock quill travel 80mm
Taper of tailstock quill MT2
Motor 0.75/1.1KW
Packing size 1400 × 700 × 680mm
Net weight 210kg / 230kg

Standard Accessories
Name QTY
3-jaw chuck 1pc
Dead centers 2pcs
Splash guard 1pc
Chip tray 1pc
Toolbox &tools 1pc
Optional Accessories
Name QTY
Rolling Center 1pc
Stand 1pc
Cutter 1pc
Back plate 1pc
Four-Jaw Chuck 1pc
Follow Rest 1pc
Steady Rest 1pc
Face Plate 1pc
