Economic Intelligent Laser Image Marking Machine for Craftwork Box

Product Description

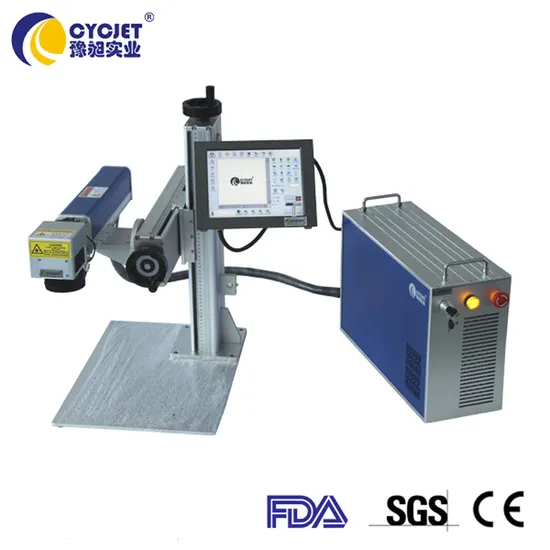

Product Picture:
Applications:
This type laser marking machine was designed for PVC/PPR/PE/HDPE Pipe Production Line, it is a professional laser marking machine to print brand, date and other information on the pipe surface. The pipe surface color will change after heat printing, the code can not move or earase it. No consumer goods, less production cost
Also suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.
Advantage:
1, Perfect design software, easy to learn and operation
2, Less Mechanical Faliure
3, Operation Status: Fly and Standstill
4, The PVC, PPR,PE Pipe Code will change color after mark,the demonstration of effects is better than ink priter.
5, The code can not move or erase it
6, No consumer goods, less production cost
Terms Of Payment:
T/T, LC
After-sale Service
1, Warranty Valid: 12 Month
2, Online or Spot Training
Details and Specifications:

Model Item		LF Laser Series
PERFORMANCE		Frame Material	ALUM.
		Laser Device	Fiber Laser Device
		Power	≥30W
		Laser Wavelength	1064nm
		Galvanometer deflection	High Precision dual dimensional scanning system
		Marking speed	≤12000mm/s
		Master Control	Highly integrated board with 10 inch Color Touch screen
		Operating System	LINUX based with High Speed Pipe Marking Software
		Cooling	6 groups Cooling Fans
Marking Specifications		Focus Distance	Focus 190mm
		Marking line type	Dot matrix, bold, vector all in one(both dot matrix and vector)
		Minimum line width	0.012mm
		Repeatability accurate positioning	0.003mm
		Marking Area	Standard 110mm×110mm(Customized available)
		Marking height	Standard Character height 110mm
		Marking Length	Unlimited
		Positioning mode	Red light positioning and focusing
		Number of characters	Any line(multi-line) within marking range
Support type		Typeface	Chinese , English, available to customized
		Marking	Number, logo, image, letter, serials number, system date & time,etc...
		File format	EZCAD/PLT
		Bar code	CODE39,CODE128,CODE126,QR,Z-Code
Others		Power Supply	100-220V/50-60HZ
		Power Consumption	600W
		Net Weight	40kg
		Oversize	64cm X 55cm X 53cm
Environmental Requirement			0ºC-45ºC; humidity≤95%; non-condensing; no shaking
The Quality Standard of CYCJET Laser Marking Machine
GB 7247-87	Radiation safety of laser products, requirements for equipment classification and user's Guide
GB10320-88	Electrical safety of laser equipment and facilities
ISO 9000-3	International software standards
GB/T12123-89	Sales packaging process
IEC 536	Classification of electrical and electronic equipment for protection against electric shock

Company:
CYCJET relies on head office which has experts with more than ten years experience and high innovation spirits to ensuring the
product's quality & reliability and the company's future development. On the base of enlarging product's scope, we do hope our
coding system can meet the requirements of the customers all over the world, also constantly devotes to offering comprehensive
high-end products of Industrial Ink-Jet & marking solution, smart & portable coding system, such latest type "A" series handheld
inkjet printers, "B" series high-speed industrial inkjet printers , "C" series portable inkjet printers, and "L" series higher configuration
fly laser marking machines. Monthly standard output capacity 800units of inkjet system, 300units of fly laser system. So based on
well experience & professional technology, we can gave all of our full sets supply & service system, reasonable price, perfect quality
to our each customer in the world !
CYCJET people consistently adhering to the concept of "Smart Thinking Smart Printing" , with professional technology, top quality,
personalized service, preferential prices to meet the needs of different users, and with new and old friends to work together, common
development, sharing a win-win,experience efficient ,smart and portable marking solution!
