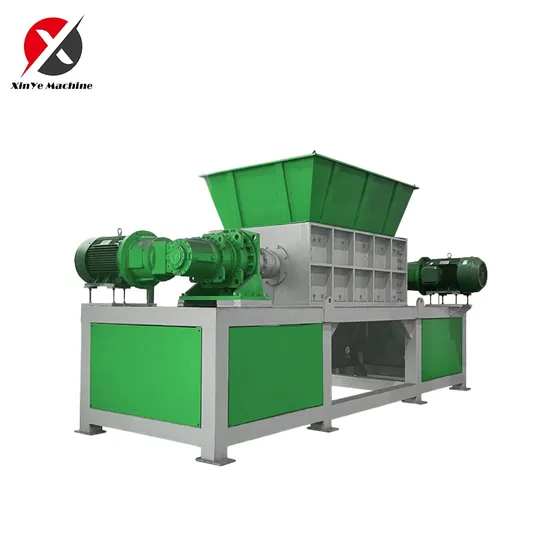

Industrial Shredder for Auto Parts, Rubber Tire & Plastic Wood Waste Recycling

Product Description

Product Description
1.Dual motor+Dual reducer drive system, low speed, high torque and strong tearingability;
2.German high alloy steel cutting tools, wear-resistant and durable, long service life;
3.42CrMo high alloy steel spindle, high precision machining, good mechanical strengthand strong impact
resistance;
4.Fixed knives are set on both sides of the knife box to prevent material winding, which can be disassembled
independently and easy to maintain;
5.Self aligning roller bearing, 4-fold sealing,effective dustproof and waterproof;
6.PLC control system, current monitoring,overload protection, automatic reverserotation, protection of motor
and tool;
7.The equipment has long service life and low maintenance cost Detailed Photos
Product Parameters

Model	600	800	1000	1400	1600	2100
Main shaft speed(rpm)	12~30	12~30	10~25	10~20	7~15	7~12
Shaft diameter(mm)	Φ120	Φ140	Φ150	Φ180	Φ200	Φ220
Blade thickness(mm)	30	35	40	45	50	50
Number of rotor blades(pcs)	20	22	25	30	30	40
Number of fixed blades(pcs)	20	22	25	30	30	40
Motor power(kw)	2x18.5~2x22	2x18.5~2x37	2x22~2x37	2x55~2x75	2x55~2x75	2x75~2x90
Cutting chamber dimensions(mm)	540x600	710x800	830x1000	830x1400	1000x1600	1000x2100
Overall dimensions(LxWxH)(mm)	2600x1350x1700	2810x1700x2115	3010x1800x2515	3410x1890x2815	3675x2100x2900	4275x2200x3200

FAQ Q:Are you a factory or a trade company?
A:We are a manufacturer with our own factory in Ma'anshan, Anhui Province, China. Welcome to take a visit! Q:How to choose a shredder machine? A:Our technical consulting services can help, recommend the most suitable machine and program according to your needs, capacity, site and other actual situation. Q:How about the service? A:We provide after-sales service, including on-site installation, commissioning equipment, guidance and training of operators etc. Make regular return visits to solve your equipment problems and optimize your equipment maintenance methods. Q:How long is your delivery time?
A:Generally, it will be about 20-35 working days after deposit, which also will affected by the actual situation of the project.
Q:Which trade terms is available? A:FOB, CFR,CIF, EXW and other terms based on your needs.

---
