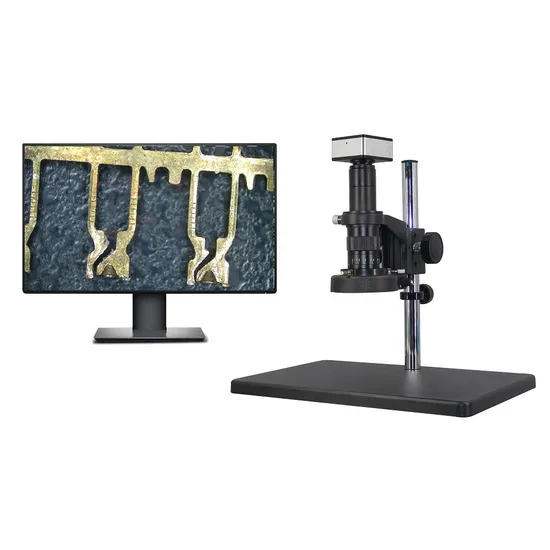

Boshida HD1002CL-A01 Digital Measurement Microscope with Buil-in Software No Need Computer

Product Description

Products Description

Model	HD1002CL-A01
Standard Maginification	14-180X
Functions	Living image, capture image, record video, measure, with moveable Cross lines.
Lens	Main len: 0.7-4.5X Optional auxiliary lens: 0.5X, 2X
Resolution/Pixels	2 mega pixels, 1920*1080P.
Field range	2-35mm
Moving distance	65mm
Camera	HDMI camera. Sony 1/2 inch CMOS color sensor. Frame rate: 60fps. Camera settings by USB mouse for white balance, exposure time, contrast, RGB, etc..
Measurement	Length, distance from point to line, distance between 2 lines, length of a arc, circumference of a cicle, angle, radian, distance of centers of circles,rectangle square and perimeter, primeter and square of elipse, etc.diameterand radius of circle, center of a circle to a line, center of a circle to a point.
Memory	USB flash disk 256M~32G
Stage	380*260mm
Illumination	Hight light LED ring light, brightness adjustable.
Optional parts	Flexiable LED ring light Auxiliary lens Main lens Boom stand 12-22 inch monitor.
Power supply	AC100-240V, 50/60Hz.

ABOUT US
FAQ Q1 How can you do sample testing? A1 We can suggest microscope according to applications of user. We had thousands of sucessful cases.If user is not sure of the microscope image quality, user can send us samples for testing. We will send pictures to user. If user is not satisfited with it,don't need to buy it.
Q2 What kind of customization you can supply?
A2 Our microscope have standard version and optional parts. User can choose configuration according to requirement and budget.For Industry using, there are varity of requirements. We can supply/produce microscopes and correct solutions according to requirements.
Support OEM & ODM
1. Free sample testingWe can test sample of user and help user to choose the most suitable microscope according to applications and requirements. 2. Online trainning. 3. Life time technical service. 4. Free SolutionsWe can suggest solutions according to applicatins and requirements. 5. CustomizedWe can customize products according to applicatins and requirements.
Warranty
1). We provide one year warranty for whole machine, three month for consumable spare parts.
2). We will cover all cost due to quality problem during the warranty period.
3). For those problems caused by improper operation or inappropriate protection or maintenance, we will repair free of charge, but for damage spare parts, we will only charge at the cost price.
4). We provide the whole using life service free of charge, but for the products that exceeds warranty period, we will only charge the replacement at cost price.

---
