Trading School Equipment Touch Screen Camera Interactive Whiteboard

Product Description

Trading school equipment touch screen camera interactive whiteboard
Features
Unique Laser Image Technology;
Completely portable, less than 1kg weight;
Boardless, no need physical board, can work on any flat and even surface;
Auto calibration within 5s, 95% success rate;
Finger touch with multi-touch, up to 100" active size;
Can recognize plenty of gestures;
Supports up to 10-people multi-writing;
Software with English, Russia, Spanish, Korean, Polish Languages options.

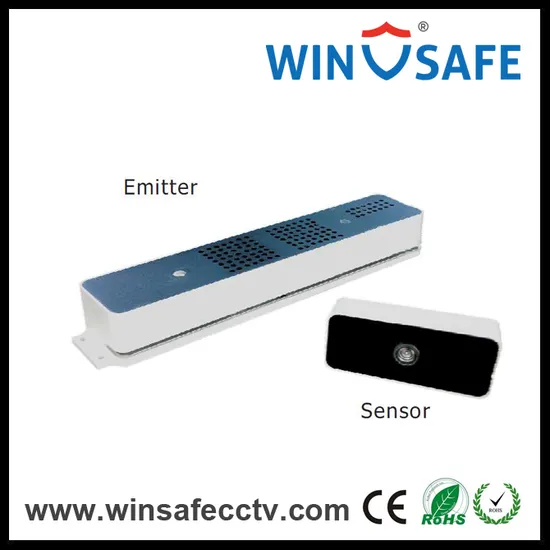

WS-PIW01 Portable interactive whiteboard comes with two parts: Emitter and sensor. Emitter can be attached on flat surface. It emits infrared laser curtain on the surface which is about 1mm thick invisile light and parallel with the projection screen surface, 1-2mm above the screen surface. When fingers or any non-transparent objects touch this virtual sruface, the light will be reflected and detected by sensor. Computer will then figure out the position of the mouse by accrately calculating the reflected light position.
Sketch Installation
Why Choose US
High quality products
Full selection range
Two years warranty/free maintainance
OEM & ODM Service
CE, FCC, RoHs Certified
Payment: T/T, Paypal, Western Union D/P L/C
3-5 daysprompt delivery
Welcome sample order for testing
Excellent after-sales services
Experienced sales team
Our Service:
1) We'll Gurantee you 100% Satisfaction
2) Pls report us if there are any problem, we will solve it ASSP.
3) This irems comes with 2 Years warrantry
4)Shipping and handing fees are not refundable for return
5) Should you have any question or problems, please send e-mail, call us or talk with us online

Model		WS-PIW01
Calibration		Automatic(5s) / Manual(25/36 points) / Semi Automatic (4 points)
Gesture Recognition		Single finger is for "Write", two fingers for "Move", "zoom in or out" and "scroll bar", Palm for "Erase", Palm stay 2s for spot, Palm two clicks for back to desktop
Multi-Touch		Ten points touch, write and erase can do together
Latency		<30ms
Filter		Software auto-control, enhance stability
Minimum Active Size		40 inch
Max Active Size		120 inch(no sunshine room); 100 inch(sunshine room)
Technology		Laser Image Technology
Positional Accuracy		±1 Pixel (Resolution 4096 * 4096)
Aspect Ratio		4:3;16:9;16:10
Projector Ratio		Ultra short throw:0.19, FP3ENGLD4, installation distance:0.30-0.4M; Short throw:0.34, FP3ENGLA4, istallation distance:0.54 - 1.1M; Long throw:3.0, FP3ENGLE4, installation distance:2.15-3.2M.
Laser Beam		Short throw / Long throw: 3units; Ultra short throw: 4 units
Laser Safety		CLASS I(Safety laser)
Wave of the laser		808nm
Power		5w
Power of the laser		150mW/Unit *3
Power requirements		5V/1.5A
Signal refresh rate		120fps
Connect		The sensor and computer are connected by USB cable; Emitter and Sensor are wireless; Emitter just need power
Weight		0.5kg
OS Requirement		Windows XP, Vista, Windows 7, Windows 8
Software		Calibration software(driver) and Glboard(education software)
Certification		CE,FCC
Package		1. Sensor;2. Emitter 3. Mounts 4. USB Cable(12m) 5. Pionter 6. Power adaptor 7. Manual.

---
