Product Description
Product Description
Product Description

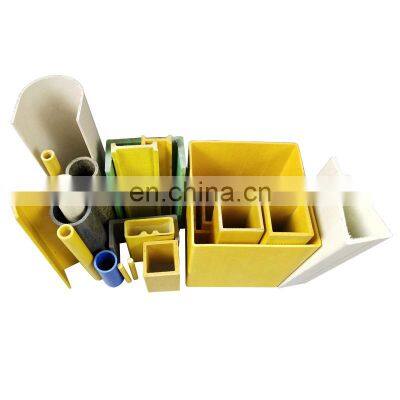

composite plastic square round pipe I shape Anger Y Bar U Channel Pultruded Profile
FRP reinforced plastic composite Pultrusion products fiberglass square pipe is a proprietary combination of fiberglass reinforcements and thermosetting polyester or vinyl ester resin systems. FPR tube is produced in more than 100 standard shapes.
All Pultruded Fiberglass tube have a surface veil to protect against glass fibers penetrating the resin surface in service and to increase corrosion and UV resistance.
Series of our pultrusion profiles include square tube, rectangular tube, round tube, L-angle, I-beam, channel, rod and other custom profiles. Pultrusion process is a mechanized process for FRP composites, involves pulling a collection of fibers in the form of roving, mat or fabric through a resin bath and then through a heated die to cure the resin, and then take shapes of profiles.
advantage of composite Pultruded Profile
1.fiberglass pultrusion profiles
2.light weight
3.high strength.
4.good dimension stability
5.excellent anti-corrosion6. Good electrical performance FRP is a good insulation material.
7.Good thermal performance.FRP is with low thermal conductivity, in room temperature, its 1.25~1.67kJ/ (m.h.k), is excellent insulation material.
Date sheet of frp pultrusionIf there is no size you need of fiberglass tube, please contact us for more size we have mold of tube.
We are also customized product according to your request.
Square tube
| Size
| Weight
|
Round tube
| Size
| Weight
|
| 25.4*25.4*3.2
| 535.00
|
| D19*2.5
| 245.00
|
| 30*30*5.0
| 950.00
|
| D22.4*2.5
| 296.00
|
| 38*38*3.2
| 880.00
|
| D24*2.5
| 320.00
|
| 38*38*6.4
| 1540.00
|
| D25.4*2.5
| 340.00
|
| 40*40*4.0
| 1155.00
|
| D32*3.0
| 550.00
|
| 40*40*6.0
| 1550.00
|
| D38*3.0
| 625.00
|
| 44*44*3.2
| 990.00
|
| D38*6.4
| 1200.00
|
| 44*44*6.4
| 1830.00
|
| D40*3.0
| 665.00
|
| 45*45*4.0
| 1245.00
|
| D40*4.0
| 858.00
|
| 50*50*4.0
| 1400.00
|
| D44*4.0
| 950.00
|
| 50*50*5.0
| 1710.00
|
| D48.3*5.0
| 1300.00
|
| 50*50*6.4
| 2110.00
|
| D50*4.0
| 1090.00
|
| 50*25*4.0
| 1020.00
|
| D50*5.0
| 1340.00
|
| 53*25*3.0
| 820.00
|
| D50*6.4
| 1650.00
|
| 54*54*5.0
| 1860.00
|
| D76*6.4
| 2640.00
|
| 60*60*5
| 2090.00
|
| D89*6.4
| 3140.00
|
Our factory and production process of fiberglass tube
The packing of fiberglass tube
Any purchase need about composite plastic square round pipe I shape Anger Y Bar U Channel Pultruded Profile , welcome contact me freely
>>
