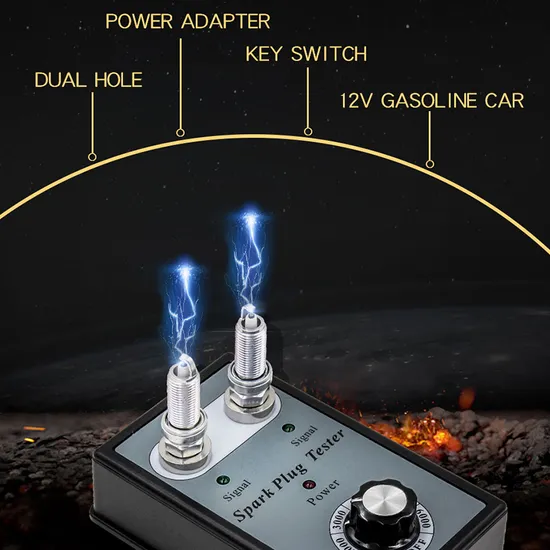

12V Car Spark Plug Tester System Analyzer Gasoline Ignition Plug Diagnostic Tool

Product Description

12V Car Spark Plug Tester System Analyzer Gasoline Ignition Plug Diagnostic Tool The frequency is adjustable, which can detect the fire adjustment of various working conditions
The design of the flashover detection table is enhanced, and the flashover hole is far away from the adjustable knob, which is safer to use
With 3 indicator lights, it can detect whether there is a signal coming, whether the fire is not adjusted is the problem of the instrument or the problem of the spark plug, the judgment is more accurate
It can be judged whether the spark plug is good or bad, the straight line of the spark is good, and the intermittent is a problem
The aging degree of the spark plug can be judged. It is better for the spark to be brilliant purple, and the dark red is badly aging
It can be judged that the spark plugs of different brands and different specifications, under the same signal, it is better to have a sharp flashover and a loud sound, and vice versa How To Use:
1. Put the spark plug in test hole 1 or 2. For comparison, put the new spark plug in hole 1 and the old spark plug in hole 2.
2. Connect the power supply.
3. Turn the key switch 4 clockwise to turn on the tester, the indicator light 3 is on, and the tester works at 1000rpm/min.
4. Turn the key switch 4 clockwise again to adjust the working frequency between 1000 rpm to 6000 rpm.
Note:
1. Please turn off the power before placing the spark plug.
2. Do not touch the spark plug with your hands during work to avoid danger.
3. The higher the frequency, the stronger the spark intensity.
Package included: 1 x Spark Plug Tester 1 x Power Adapter Specifications

Brand	N/A
Gross Weight	0.325kg
Volume Weight	0.281kg
Package Length	20.300cm
Package Width	9.600cm
Package Height	7.200cm
Product packaging	White Paper Box

---
