150-2000kg/H Pet Bottle Recycling Washing Line

Product Description

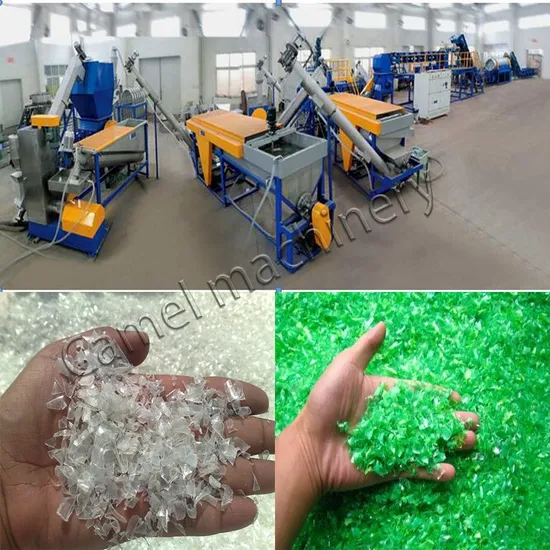

150-2000kg/h PET bottle recycling washing line
Product Description
1. This line is mainly used for recycling the waste PET bottle, PET container etc.
2. To separate PET bottles to flakes from label, cap, oil, garbage.
3. This line is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.
4. Easy to operate, Full automatic.
5. Production capacity: 300KG/H, 500KG/H, 1000KG/H, 1500KG/H, 2000KG/H
Main Advantage :
1. Automotive line for recycling the PET bottles and other waste plastic profile, except the film.
2. The final product is the cleaning flakes, if you want the final product is pellets, we should equip the granulator line again.

Process flow:
Belt conveyer → Rolling separator →Manual pick table → Metal separator → Belt conveyer → Crusher → Label Separator → Hot washer 1 → Friction washing machine → Hot washer 2 → High-speed friction washing machine → Rinsing tank → Spray washing→ Dewatering machine → Blower dryness system → Storage hopper → Finished product packing
Features :
Capacity: 300-2000kg per hour
Moisture of PET Flakes: Less Than 1.5%
Cap &Label separate with the PET bottle flakes automatically
Bottle Types: PET Bottle, Plastic Bucket, Water Bottle, Coke Bottle,
Application: PET Strap, PET Yarn Fiber, PET Sheet

Machine capacity(Kg/h)	300kg/h	500kg/h	800kg/h	1000kg/h	1500kg/h	2000kg/h
Balers Opener	/	optional	optional	Yes	Yes	Yes
Label Remover	optional	optional	optional	Yes	Yes	Yes
Sorting Table	optional	optional	optional	Yes	Yes	Yes
Metal Detector	optional	optional	optional	optional	optional	optional
Belt Conveyor	Yes	Yes	Yes	Yes	Yes	Yes
Crusher	Yes	Yes	Yes	Yes	Yes	Yes
Screw Feeder	Yes	Yes	Yes	Yes	Yes	Yes
Friction Washer	Yes	Yes	Yes	Yes	Yes	Yes
Floating Washer Tank	Yes	Yes	Yes	Yes	Yes	Yes
Hot Washer	optional	Yes	Yes	Yes	Yes	Yes
Dewatering Machine	Yes	Yes	Yes	Yes	Yes	Yes
Air Dryer	Yes	Yes	Yes	Yes	Yes	Yes
Silo	Yes	Yes	Yes	Yes	Yes	Yes

Our machine are qualified with CE certificate. We can Provide you Turn Key Solution.
