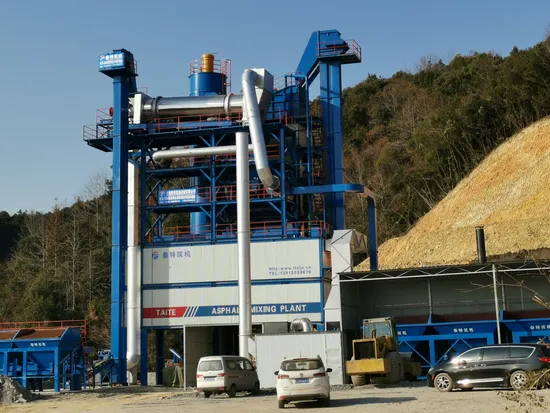

Modular Small Asphalt Concrete Mixing Plant

Product Description

Product introduction:
Compact overall layout, novel structure, independent innovation and absorption of international advanced technology, excellent performance.
Advanced microcomputer control system, PLC module can achieve automatic, semi-automatic, manual joint control and single control. Simulation screen real-time dynamic display, full range of fault self-diagnosis.
The whole machine adopts electronic measurement. The advanced double-stroke measuring method has automatic compensation function and high measuring accuracy.
Unique environmental performance, fully sealed, low noise, dust emission standards.
The core components are assembled with imported components to fully ensure the reliability of the entire equipment.
The production capacity is 160 tons per hour.
THE MAIN TECHNICAL CHARACTERISTICS:

content/type	LB-1000
Rated productivity(t/h)	60-80
Mixing bar capacity(kg/batch)	1000
Total installed capacity (Finished product warehouse is not included)(kw)	260
Total floor area(m×m)	35×30=1050
Fuel consumption rate(kg/t)	≤6.5
Type of fuel	diesel fuel,heavy oil,natural gas
Finished material temperature(ºC)	140-160
Cumulative measurement accuracy of ore materials(%)	≤±0.3
Measurement accuracy of asphalt materials(%)	≤±0.1
Powder metering accuracy(%)	≤±0.2
Oil-stone ratio deviation(%)	≤±0.1
Stable and accurate discharge temperature(ºC)	±5
Ambient noise[dB(A)]	≤80
Noise in the operator's ears [dB(A)]	≤70
Dust removal method	Compartment, high-pressure pulse bag
Dust emission concentration[mg/Nm3]	≤100

Company Introduction:
Wuxi Taite Road Construction Machinery Co., Ltd. is located in the scenic Taihu Lake, Mountain feet, a stone's throw away from the Sunan International Airport, and south Beijing-Hangzhou Grand Canal, west of State Road 312 and the Beijing-Shanghai intercity high-speed railway, adjacent to the Taihu Lake high-speed, traffic is very convenient, excellent location of the ground; company is located in Yangtze River Delta, Wuxi New District Shuofang Industrial Park, the region's economic activity, information fast, accessible at home and abroad with technical support and product support capabilities to build road maintenance machinery and equipment as the representative of the product, has focused on the development of the contemporary trend of industrial modernization. Building company is the earliest professional manufacturer of road maintenance equipment.
Certifications:
Shipping photos:

---
