Automatic Hydraulic Swing Arm Clicker Press

Product Description

Clicker press

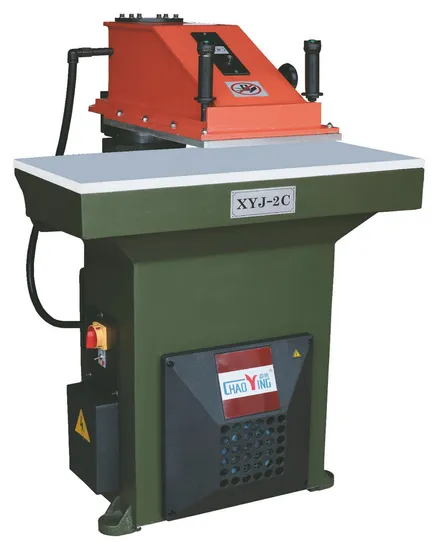

Automatic Hydraulic Swing Arm Clicker Press
USE AND CHARACTER:
The machine is suitable for cutting single layer or multiple layers of leather, plastic, paperboard, fabric
and other materials by forming cutter. It is an ideal cutting device for shoemaking, luggage & baggage,
clothing, automobile, artwork, packaging, electronics and other industries.
1. There are two types of cutting modes for selection. The first type is small pressure stepless regulation.
The second type is that the cutting adopts intelligent pressure feedback design function without the need
of setting cutting point. The height of die cutter has no influence on the cutting and ideal cutting effect can
be obtained from each cutting point.
2. Through double oil way static pressure supporting lubricating system, the vertical column makes operators' work more easy, flexible and worry-saving.
3. The main fittings are made of high quality imported assemblies, which have characteristics such as reliable quality, low noise, high efficiency and energy saving.
TECHNICAL SPECIFICATION:

Maximum cutting force	220kN/22Tons
Travel adjustment range	0- 70mm
Range between the working tables	30- 100mm
Size of upper rocker	360× 430mm
Size of lower worktable	900× 430mm
Motor power	1.1kW
Overall dimension	950× 950× 1350mm
Total weight	650kg

The die cutter :
Factory views :
Certificates :
Attending Fairs :
Customers' visiting

---
