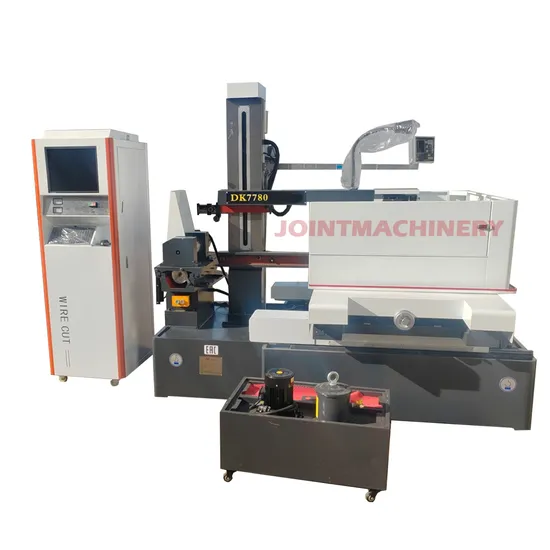

CNC Wire Cutting Machine Dk7780 EDM Die Sinking Machine for Advanced Metal Molding Solutions

Product Description

√ Experience unparalleled cutting efficiency with speeds soaring up to 90mm.2/min, making it 2-3 times faster than standard medium wire machines.
√ Achieve remarkable surface smoothness with roughness levels at Ra≤2.5μm, matching the superior wire effect of conventional C type machines.
√ Equipped with advanced intelligent control cabinets and an extensive processing library, mastering basic operation is a breeze.
√ Exceptional quality meets affordability, all while delivering the wire effect comparable to standard C type machines.
CNC Wire Cutting Machine Dk7780 EDM Die Sinking Machine for Advanced Metal Molding Solutions

Model	Unit	DK7780
Table size	mm	1350*985
Table travel	mm	800*1000
Wire frame span	mm	600
Processing taper	°/mm	6°,15°,30°/80
Max cutting speed	mm2/min	≥90
Optimum processing surface roughness	μm	≤Ra2.5
Electrode diameter	mm	0.10-0.20
Speed of the electrode wire	m/s	11.5
Working liquid		DX-1 DX-4
Processing accuracy		According to GB7926-87 standard
Worktable movement pulse amount		0.001
Machine consumpition power	kw	<1
Max workpiece weight	kg	2000
Net weight	kg	4000
Diemnsion	mm	2600*2400*1800
