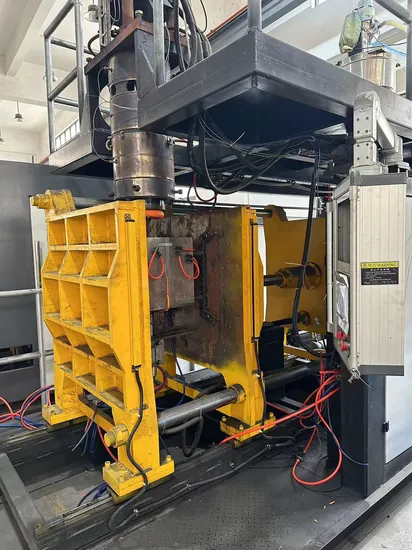

Automatic 15L HDPE Bottle PE Blow Molding Stretch Blow Moulding Making Machine

Product Description

Yuhuan Shengjiang Plastic Machinery Factory is located in Qinggang economic development zone of Yuhuan, Taizhou city, Zhejiang province. It is an integrated company which includes research & development, production and sales for more than 30years. The Factory is professional on producing blow moulding machine, extrusion machine, and tube drawing machine, especially in the equipments of one-time blow moulding. All the equipments are widely used in the plastic packaging industries for beverage, washing, furniture, toys, automobile, medical, medicine and farm chemical. And the raw materials involved include (PVC, PETG,PE, PP, PS, PC, ABS,)etc.Based on the advanced equipments for production inspection, commissioning and installation.

Code	SY-R-80
Max Product Volume	5L
Output	90pc/h
Machine Size	4700mm*2200mm*4000mm
Weight	6000KGS
Voltage&Frequency	380V/50HZ
screw Diameter	80mm
L/D Ratio	1:25
Die Head Qty	1pcs
Max Center Distance of Die Head	/
Extrusion Motor Power	30KW
Total Power	90KW
Average Energy Consumption	40kw
Extruder heating power	16kw
Number of hating zone	4
Oil pump drive power	22KW
Max plasticizing capacity	100kg/h
Platen Size	600mm*700mm
Max mould size	400mm*800mm*400mm
Clamping force	120KN
Opening Stroke	400mm
Moving Stroke	/
Cooling water pressure	0.3MPa
Water consumption	60L/min
Air pressure	0.8Mpa
Air consumption	0.6centiare/min

---
