PTFE Braided Hose PTFE Smooth High Pressure Hydraulic Hose

Product Description

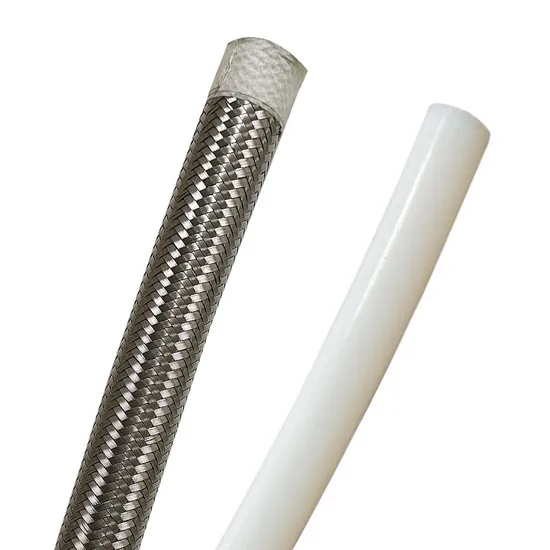

Product Description PTFE smooth hose braided with 304 stainless steel
1. Smooth ptfe hose less resistance and less residue fluid
2. It is widely used in chemical, food and medical industries.
3. Material: PTFE+304 stainless steel.
4. Working temperature: -70~+260ºC
5. Advantages: less residue liquid, less resistance, flexible, non-stick, non-toxic, anti-corrosion.
Technical Date Technical date of PTFE smooth hose braid with 304 stainless steel

Inner Diameter (inches)	Working Pressure (bar)	Burst Pressure (bar)	Bend Radius (mm)
1/8''	280	840	40
3/16''	227	680	50
1/4''	200	600	75
5/16''	177	530	100
3/8''	153	460	125
13/32''	150	450	135
1/2''	140	420	165
5/8''	117	350	200
3/4''	93	280	230
7/8''	82	245	260
1''	67	200	300

Certifications
Company Profile Sihui Jiyi Fluorine Plastic Co., Ltd.
Established in 2014. Located in Zhaoqing city, Guangdong provine, China. Factory certifications: ISO 9001, ISO 13485 Have 2 cleanrooms, to produce food and medical grade tube. A professional manufacturer of PTFE hose, FEP hose and PFA hose

---
