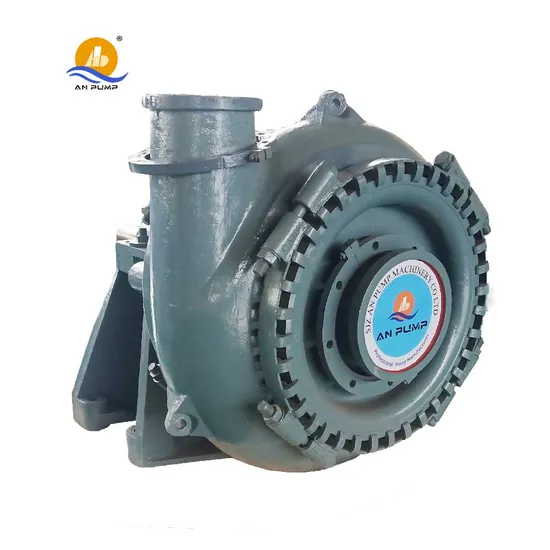

Centrifugal Horizontal Suction River Dredge Gravel Sand Pump

Product Description

Centrifugal Horizontal Suction River Dredge Gravel Sand Pump Product Description
AMG/AMGH gravel pumps, Construction of this pump is of single casing connected by means of clamp bands and wide wet passage. The wet parts are made of Ni hard and high chromium abrasion resistance alloys.
The discharge direction of pump can be oriented in any direction of 360 degrees. This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion resistance.
Drive types includes V-belts driven, flexible coupling driven, gear box driven, hydraulic coupler driven, variable frequency driven, thyristor speed control etc.

Structural Features
- Single stage, single suction, horizontal centrifugal dredge pump
- Wet parts such as casing, impeller, liner plate in anti-abrasion high chrome cast iron alloy.
- Horizontal-central-split container bracket easy for maintaining
- Packing or mechanical seal
- Protective shell surrounding the casing ideal for heavy duty
- Hydraulic optimization design, high-efficient, energy-saving and stable operation
Pump Performance

Model	Outlet Dia (mm)	Speed (rpm)	Flow (m3/h)	Head (m)	Max Power (kw)	Max Solid (mm)
6/4D-AMG	100	600-1400	36-250	7-56	60	82
8/6E-AMG	150	800-1400	180-540	12-52	120	120
10/8F-AMG	200	500-1000	180-820	12-56	560	178
12/10G-AMG	250	400-850	360-1200	12-60	600	220
14/12G-AMG	300	300-700	700-2700	8-70	600	241
14/12TU-AMG	300	300-700	700-2700	8-70	1200	241
10/8F-AMGH	200	500-1100	50-900	20-90	560	180
12/10G-AMGH	250	350-700	500-2000	20-80	600	210
16/14TU-AMGH	350	250-500	1000-2800	20-80	1200	230

Application
Heavy duty Mining Process Coal Preparation Plant
Cyclone Feeds Mineral Processing
Tailings Mill Grinding
Slurry Feeding System Heavy Refuse Removal
Pulp And Paper Dredging
Abrasive Slurry High Density Slurries
