Automatic Chicken Raising equipment for Broiler Chickens

Product Description

Automatic Feeding System For Broiler Farm
Diameter of conveying pipe: 45mm (4-pan/3m, 3pan/3m).
Material: hot-dip galvanized sheet pipe with the zinc coating amount of more than 275 square meter .
Helical spring auger from South Africa feeding capacity:450kg/h.
1. Hopper and driving motor:
vice hopper:
Hopper location: hopper installed at the end of the feed line or middle of the feed line to realize automatic feed delivery, feed delivered equally to each feed pan.
Hopper installed at middle of pan peed line for fast feed delivering from hopper to each feed pan for those long length feeding lines.
Driving motor: Power:0.75kw, 1.1kw,1.5kw, base on your chicken shed length.(Max Length:150m).
Voltage:380V/220V three phase or 220V, single phase, base on your local voltage.
Frequency: 50HZ/60hz

2.Level control and level sensor:
Using feed lever sensor or micro-switch in hopper for automatic feed lever controlling. To control drive motor on-off, when there is feed in hopper, motor will be on for movement, when the feed in hopper under micro-switch, motor will be off for movement, this device forbid motor keeping movement when there is no feed in feed pipe.
Feed controlling with feed sensor to satisfy sectional brooding needs. During brooding period, generally AFS feed level sensor is placed in the fourth or fifth pan of brooding district to realize sectional birds brooding.
3.Suspension system:

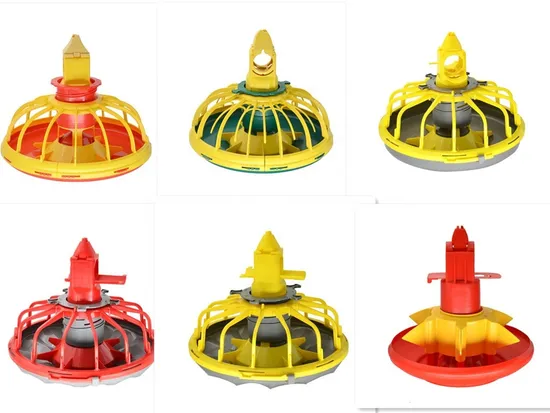

4. Feeder pan:
1) Pan type:
Feed pan can rotate in horizontal 360 degree. Easy and convenient feed level adjustment. Top support has the shut-off slid which can meet the customer's brooding and group expansion requirement in different areas. Pan bottom and grill are locked together by the hinge. Pecial designed feed cone flange can avoid the feed waste because of the click's peck.
2)Level ring:
Handy feed level adjustment ring control different feed level in pan. 6 level settings.
3)Pan bottom
The undulated ring pan bottom perfectly keep feed inside with less feed wasted. Easily washing through high pressure.
Our services:
1. We can sent the free sample to you, but it's the client for freight.
2. Quotation within 24hours after getting your reply!
3. Advise the most economic equipment -setting way for your chicken house!
4. All the production will be finished within 15 days after getting order!
5. All the shipping documents will be expressed after shippment!

---
