Dx2030 CNC I Beam Box Beam End Face Milling Machine

Product Description

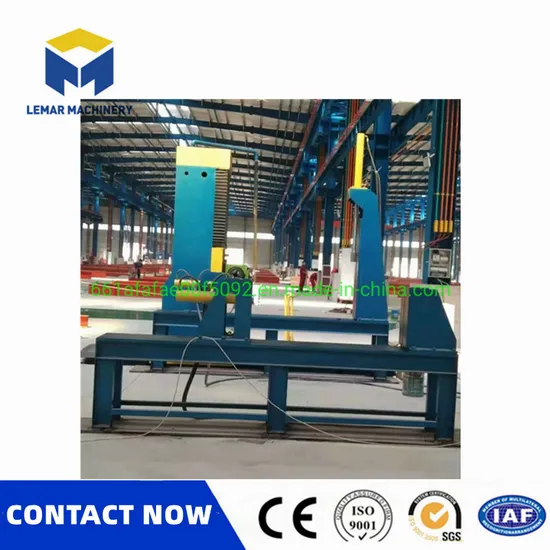

DX2030 CNC I Beam Box Beam End Face Milling Machine Milling machine mainly refers to a machine tool that uses milling cutters to process various surfaces of workpieces. Usually, the rotary motion of the milling cutter is the main motion, and the movement of the workpiece and the milling cutter is the feed motion. DX series face milling machines are bevel cutting and milling equipment specially designed for H-beam, BOX-beam or other profiles. As a manufacturer of face milling machines, Lemar's beam end face milling machines are characterized by simple operation, sturdy structure, quick adjustment, and convenient tool replacement. By using a CNC system, the machine is more efficient and easier to operate. H-beam or BOX column end profile beam, the maximum working size is 1200x1500mm while the minimum is 300x200mm.
Specification:
Technical details:

No.	Item	Specification	Note
1	Applicable workpiece maximum cross-sectional size H×W	2000×3000 mm
2	Working speed in the horizontal direction of the sliding table	100~800 mm/min	Frequency conversion speed regulation, milling feed speed
3	The speed of advance and rewind in the horizontal direction of the slide table	1200 mm/min	Adjust the speed
4	Power head vertical milling speed	100~800 mm/min	Frequency conversion speed regulation, milling feed speed
5	Horizontal feed motor power	2.2 kW	Frequency
6	Vertical adjustment of motor power	3.0 kW	Frequency
7	Milling motor power	7.5 kW
8	Milling head spindle speed	75~420 rpm	6-speed handle speed-adjustable milling power head
9	Maximum milling depth at one time	8mm	Appropriate cutter head and walking speed
10	Adjustment angle of the power head	0~45º	Adjustable bevels of the millable end face in the vertical plane
11	Milling cutter head diameter	Ø125~250 mm	Factory equipped with a pair of Ø 200 cutter head
12	Telescopic amount of milling head spindle	L=100 mm
13	Hydraulic clamping workpiece support	1 set 2 pcs
14	Power supply	380V, 50Hz, 3p

The end face milling machine is composed of milling head, lifting column, sliding table, bed, mechanical feed system, electrical control system, guide rail protection device, tool, etc. Features: 1. The sliding table is designed and manufactured with high-quality carbon steel.
Structural components are designed for heavy-duty end mill strength.
The welded structure is metal processed after aging treatment, and has the characteristics of compact structure, good rigidity and good stability
2. The milling head of the steel structure end milling machine is a high-power milling power head produced by Japanese technology, with a power of 7.5 kilowatts, and the milling performance is greatly improved.
The rotational speed of the power head is adjusted by exchanging gears, with reliable performance, large speed change range, good rigidity, low noise and high efficiency, and easy operation.
This power head has good milling performance and a very rigid spindle, making it suitable for heavy duty machining. And the spindle speed can be easily adjusted through two handle.
3. Mechanical transmission system:
a. The horizontal transmission mechanism of the CNC H beam Box beam end face milling machine is driven by the gear box to drive the rack and pinion transmission pair to make the horizontal sliding table reciprocate. b. The vertical transmission mechanism of the H beam box beam CE certificate end face milling machine is driven by the reduction box to drive the trapezoidal screw transmission pair to make the vertical slide plate move up and down
4. The overall angle of the milling power head can be adjusted in the vertical plane, the angle adjustment range is 0-45°, manual adjustment, and the bolts are locked after the adjustment is in place
Edge milling machine cutting amount reference:

Diameter of cutter head D(mm)	Number of teeth for standard face mills z	Recommended stock removal per tooth m(mm)	Recommended cutter head speed(rpm.)	Appropriate cutting speed v(mm/min.)	Set the cutting face width A(mm)	Cutting depth with 3KW power head h(mm)	Cutting depth with 5.5KW power head h(mm)	Cutting depth with 7.5KW power head h(mm)
160	9	0.18	400	650	15	3	6	8.5
					20	2.2	4.3	6
					30	1.35	2.7	3.7
					40	0.97	1.9	2.7
					50	0.74	1.5	2.1
200	12	0.16	320	610	15	3.3	6.5	9.1
					20	2.3	4.6	6.5
					30	1.45	2.9	4
					40	1.03	2	2.9
					50	0.8	1.6	2.2

FAQ: 1. What can we get from Wuxi Lemar?
Advanced concepts, excellent technology and exquisite craftsmanship are the magic weapon for WUXI Lemar to stand out among many H-beam production lines and automatic pipe welding equipment manufacturers.
24/7 days after-sales service and on site installation and commissioning guide can be provided by our factory, professional technical installation guide can make you choose our products with more peace of mind and use our products with more peace of mind
2.How to promise the machine quality?
We choose high-quality steel raw materials and accessories, and have a professional design team, strict quality production supervision and control team to ensure the quality of the machine, and timely feedback the production process to customers, so that customers can understand the production process of the equipment more clearly.
3.How about the payment?
T/T L/C both are accepted by us.
30% deposit and 70% balance before shipment.
4.How about delivery?
In order to ensure the quality of each machine, our production cycle is generally 35~40 days for the standard machines required by customers, and the non-standard machines customized by customers need to negotiate the delivery time with us in advance
5.Can I visit your factory?
Sure, you are warmly welcomed to visit our factory, we can drive you up in Shanghai Airport and train stations.

---
