Singlemode Single Core UL LSZH Ofnp Low Friction FTTH Fiber Optic Cable

Product Description

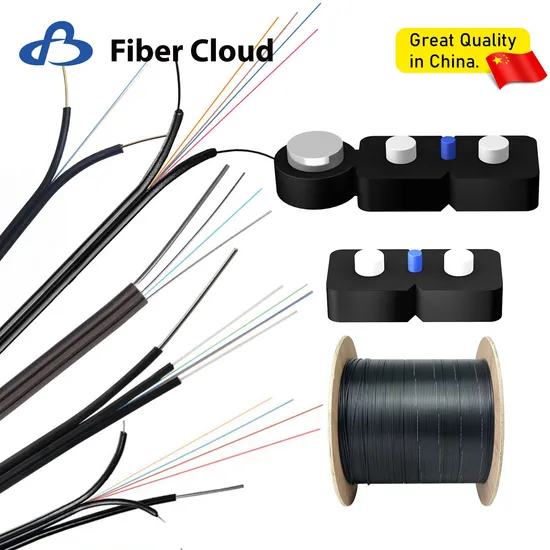

1/2/4 Cores Manufacture UL OPNR Approved FTTH G657A2 GJXFH Optical Fiber Cable Covered Wire Bow-type FTTH Drop Cable
The optical fiber unit is positioned in the center. Two paraller Fiber Reinforced Plastics(FRP) are placed at the two sides. Then, the cable is completed with a balck or colored LSZH sheath.
• Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
• Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
• Simple structure, light weight and hign practicability.
• Novel flute design, easily strip and splice, simplify the installation and maintenance.
• Low smoke, zero halogen and flame retardant sheath.
• Fiber to home cable.
• Overhead/pipeline/direct buried laying.
• Indoor/outdoor.
Product Parameters
Technical Characteristics
Storage and use temperature: -40ºC to +120ºC.

Cable Code	Fiber Count	Cable Size	Cable Weight(Ref)	Tensile Strength	Crush Resistance	Bending Radius
	(core)	mm	(kg/km)	Long/Short Term	Long/Short Term	Dynamic/Static
				(N)	(N/100mm)	(mm)
GJXFH-1Xn	1	(2.0±0.1)X(3.0±0.1)	8	800/2500	500/1000	30/60
GJXFH-2Xn	2	(2.0±0.1)X(3.0±0.1)	8.5	800/2500	500/1000	30/60
GJXFJH-1Xn	1	(2.0±0.1)X(3.8±0.1)	9	800/2500	500/1000	30/60
GJXFDH-4Xn	4(Ribbon)	(2.0±0.1)X(4.0±0.1)	10	800/2500	500/1000	30/60

Optical properties

Fiber Type	attenuation				Overfilled Bandwidth	Effective mode bandwidth	10G Ethernet link length	Minimum bending radius
Options	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
	Typical value	maximum value	Typical value	maximum value
unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
BI-OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	7.5
BI-OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	7.5

Certifications
Packaging & Shipping
Our Service: 1.Customers solutions in days, not weeks. 2.Warmly services with careful attentions. 3.Can provide your specific inquiry within 24 hours. 4.Save much costs, bring more benefit for customer to expand business. 5.We have been 10 years experience in this field. We are the prefessional supplier that you can trust.
6.we know china market very well ,so we can communicate to help you find the products you needed! 7.We acknowledge customer's stringent quality demands for optical fiber products and pledge to supply products meeting international standards. FAQ: Q1:How can you guarantee the delivery time? A:1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience. 2. We can regulate the penalty clause in the contract for the late delay. Q2:What's your best price? A:Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time. Q3:What's your BRAND? A:FIBERCLOUD,YOFC,CORNING,OFS.. Q4:Can I print our own logo on the product? A:Yes, Please send your logo to us. Q5:Can you provide OEM/ODM service? A:Yes, we can. Please tell us the details of your requirements Q6: How to deal with the faulty? A: First of all, our products are produced under a strict quality control system, and the defective rate will be less than 0.2%.
Secondly, we will conduct strict quality inspections and issue test reports before shipment to ensure the quality of the products. Q7:Why choose us to cooperate? 1. We have first-class production line and strict quality management system. 2. We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment. 3. We can provide the most competitive price to meet your budget. 4. We also design and innovate the new products based on our rich experience . 5. We have professional team to provide comprehensive one-stop service for you.
6. we know china market very well ,so we can communicate to help you find the products you needed! Hope this would be a good start for our cooperation!

---
