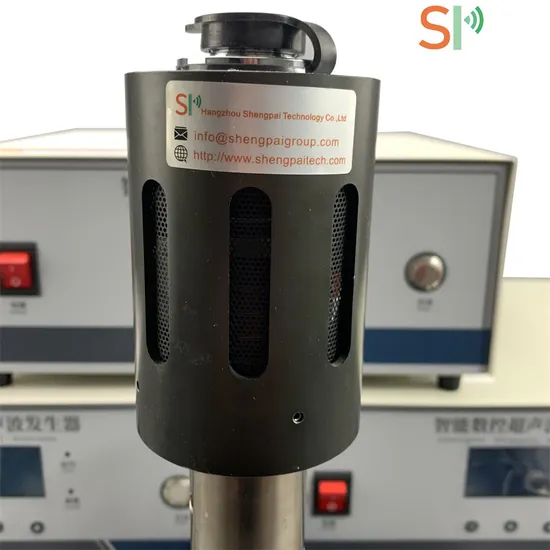

20KHz Lab Ultrasonic Homogenizer For Plant Extraction

Product Description

Ultrasonic homogenizers, commonly referred to as "sonicators," disrupt tissues and cells through cavitation and ultrasonic waves. Basically, an ultrasonic homogenizer has a tip which very rapidly vibrates, causing bubbles in the surrounding solution to rapidly form and collapse. This creates shear and shock waves which tear apart cells and particles.
Ultrasonic sonicators are great for breaking apart cells and subcellular structures in suspension. They are not good for homogenizing intact tissue. Other applications include creating emulsions, dispersing nanoparticles, and reducing the size of particles in suspension. Sonicators generate a significant amount of heat so they may not work well with temperature-sensitive samples.
Uncertain if an ultrasonic is the right homogenizer for your application? Pls kindly let us know, we can provide assistance.
Parameters:

Model	SPS20-500S	SPS20-1000S	SPS20-1000	SPS20-2000	SPS20-3000	SPS20-3000Z
Frequency	20Khz	20Khz	20Khz	20Khz	20Khz	20Khz
Power	500 W	1000 W	1000 W	2000W	3000W	3000 W
Voltage	220V	220V	220V	220V	220V	220V
Pressure	Normal	Normal	Normal	35 MPa	35 MPa	35 MPa
Processing capacity (L/H)	0.5-2.0	1.0-4.0	5.0	20.0	50.0	100.0
Material of probe	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy
Generator	Digital type	Digital type	Digital type	Digital type	Digital type	Digital type

Features:
1. Core parts with Titanium materials
2. Ultrasonic horn with different size and type for selection
3. Matching with digital generator, auto-tuning, auto search frequency
4. With automatic alarm protection, easy to operate
5. Power adjustable from 1% to 99%
6. Amplitude stability, long working hours, radiation area is increased 2.5 times than
traditional tools
7. Provide consulting services and custom reactor designs
8. Custom sizes available for laboratory and high volume industrial applications
Application:
1. Cell Disruption
2.Tissue Dissociation / Cell Isolation
3. Cellular Organelle Extraction
4. Microorganism Extraction
5. Plant oil extraction
6. THC extraction 7. Essential Oil Extraction
8. Caffeine Extraction
Advantages of Ultrasonic Extraction: 1. High yields 2. Superior Quality 3. Full Spectrum Extracts 4. Rapid Process 5. Compatible with Any Solvent 6. Easy and Safe to Operate 7. Linear Scalability
8. Environmental-Friendly 9. Fast RoI
Customer Evalution:
The ultrasonic sonicator works very well.
We improved yield by 5% if we run for 5 minutes.
You have been most kind and helpful. Thank you for your expert communication.
Customers' recognition and trust is our driving force.
Shengpai Technology relies on "Customer Service Being First" as its corporate culture. Aim is "Quality First, Service First". Today, because of its abundant professional knowledge and good after-sales service, Shengpai Technology has gained a very good reputation.
