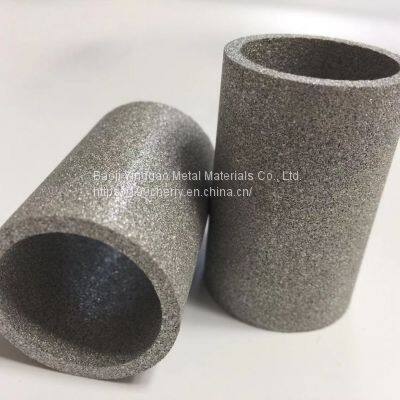

Porous titanium tubes

Product Details

Product Description

Product Description
TopTiTech provides porous titanium tubes with a wide range of filtration precision and dimensions. We can carry out machining on sintered titanium tubes, such as punching, cutting, etc. A porous titanium tube with one end closed is also available on request. Porous titanium tube is used as a filter in many fields, such as the pharmaceutical industry, water treatment industry, food industry, biological engineering, chemical industry, petrochemical industry, metallurgical industry, and gas purification, etc.
Specifications
Brand: TopTiTech
Origin: Baoji, China
Filtration precision: 0.22um─100um
(0.45 um, 1 um, 3 um, 5 um, 10 um, 20 um, 30 um, 50 um)
Porosity: 30%─40%
Pressure: 0.6Mpa
Temperature resistance: 300 ℃(wet)
Maximum Operating pressure: 1Mpa
Tube dimension range: OD: 14-1000mm, WT: 2.5-3mm, Length: 100-1000mm
Features
many pores and uniform distribution
low filtration resistance
high permeation efficiency
chemically stable
resistant to acid and alkali corrosion
has antioxidant properties
no particle shedding in the process of use, which does not make the original liquid form secondary pollution
meets the requirements of food hygiene and pharmaceutical GMP.
Manufacture process
Raw titanium powder preparation—Cold isostatic pressing—Sintering at high temperature & vacuum-Machined to size-Assembled to filter if required

---
