Glass Fiber Reinforcement Tape with Scrim Backing Polyester Film for Cable

US$5.00-6.00 100 kg (MOQ)

Basic Info.

Model NO.
175N/CM
Type
Insulation Tape
Feature
High Strength, Waterproof, Flame Retardant
Color
Transparent
Material
PET
Tensile Strength
Over 175 N/Cm
Structure
Glass Scrim Bonded to Pet Film
Thickness
210um
Weight
120GSM
Roll Length
1650m/Customized
Width
38mm/40mm/50mm/ Customized
Density Ends/25mm
9*8
Elongation
4.42%
Glass
132tex
Transport Package
Pallet
Specification
A Grade
Origin
China
HS Code
7019909000
Production Capacity
100000/M

Product Description

Product Description It is a laminated tape composed of glass scrim bonded to polyester film with a fire retardant adhesive.
It is primarily used as a replacement for glass braid on SEU and SER service entrance cable and can also be used as bedding or binding tape.

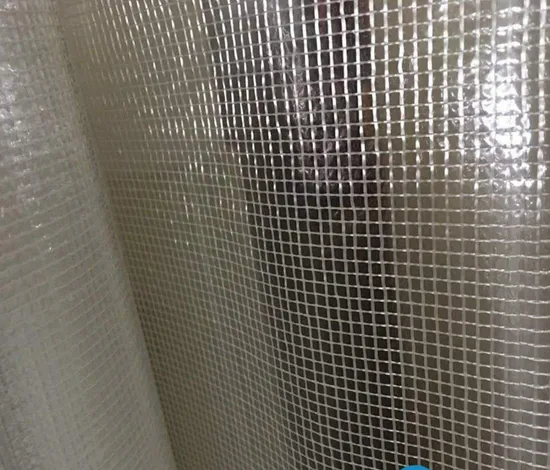

Detailed Photos
Product Parameters Specification:
Specification A B
Tensile strength 140N/cm 175 N/cm
The real data can reach 160N/cm. The real data can reach 220N/cm.
Thickness 0.145mm 0.210mm
Area Weight 99GSM 120GSM
Density(ends/25mm) Warp 7.8 Warp 9
Weft 7.4 Weft 8
Glass 132 tex 132 tex

General Properties:
Color White
Surface Dry PET side, slight tack reverse
Thread Count 9*8
Flammability Self extinguishing when taped in place. Nonflammable scrim
Core 3" paper/ 6" paper core
Shelf Life 1 year in original packaging

Packaging & Shipping
Give us a chance, and we' ll return you with satisfaction.
