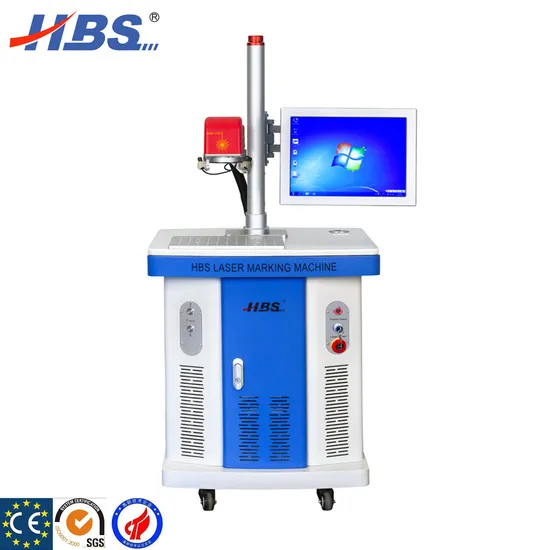

Desktop High Precision Fiber Laser Marking Machine for Sale

Product Description

20W Fiber Laser Marking Machine for Stainless Steel /laser marker

Technical Parameter:

Laser Wavelength	1064nm	Beam Quality	<1.5
Laser Repetition	≤100KHz	Standard Marking Area	110mm x 110mm
Making Depth	≤1.5mm(Can be Adjustable)	Marking Speed	≤12000mm/s
Min. Line Width	0.01mm	Min. Character Size	0.05mm
Repetition Precision	±0.001mm	Power Consumption	≤500W
Cooling method	Air cooled	Power Supply	220V/50Hz/10A

Lens Type	HBS-65	HBS-110	HBS-175
Focal Length	100mm	170mm	250mm
Marking Area	65mm*65mm	110mm*110mm	175mm*175mm

Packing Details
Dimension(mm): 855X1000X1170 (Machine head: 530X220X660, table: 600X700X750)
Net Weight(kg): 70(Machine head: 13.5, table:56.5)
Gross Weight(kg): 140
Product Introduction:
Fiber Laser Marking Machine is the latest generation of laser marking system, resulting from our own research using the world's most advanced laser technology.
Adoption of fiber laser system for outputting laser, and then achieve marking functions by high-speed scanning galvanometer mirror system.
The electro-optical conversion efficiency of fiber laser marking can reach to 90% or above, it has higher beam quality in comparison to semiconductor laser marking machine.
The machine is designed for long-time maintenance-free.
Product Features:
Extremely fast, with high-speed galvanometer.
Small volume, light weight.
No consumables, low power consumption, less than 500W.
Completely air cooled, do not need water chiller, lower power consumption.
Robust under harsh environment and temperature change, can operate with batteries or supply from automobile cigarette lighter in case of power failure.
Low product depreciation cost. Ability to meet customers' mass and stable production.

Product Application:
The machine is assembled with fiber laser from Germany or Britain, or RAYCUS. The working time can reach 100,000 hours or above, competent in different work locations.
Fiber laser marking machines are used in a wide variety of applications such as in the marking of gold, silver diamond and other jewelries, sanitary tools, food packaging, tobacco packaging, beer and beverage packaging, pharmaceutical packaging, medical equipments, watches & glassware, automotive parts, plastic & paper material, electronic hardware, gold bullion, and also in other areas such as aviation, aircraft manufacturing, projectile body and explosion proof materials.

---
