Gjxh Gjxch Gjyfxch 1, 2, 4, 6, 8, 12 Cores FTTH Flat Indoor/Outdoor Fiber Optic Cable Drop Cable

Product Description

Product DescriptionOutdoor FTTH Drop cableFiber: G657A1/A2
Core number: 1-8 cores
Parallel Wire: 0.45mm *2 Steel/FRP/KFRP
Messenger Wire: 1.0mm Steel/FRP
Jacket Material: LSZH/PVC

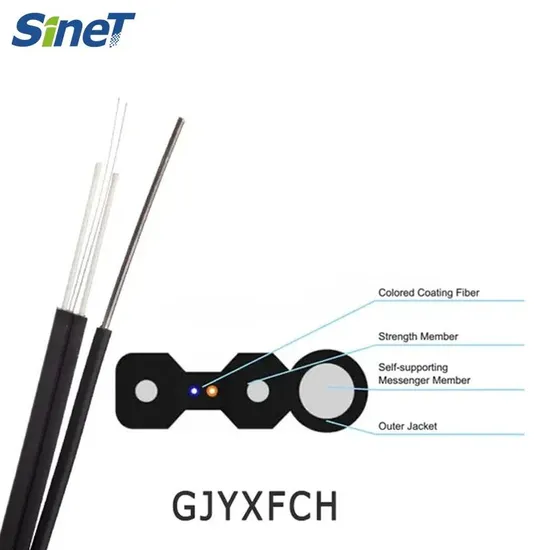

Cable Length: 1km/drum or 2km/drum FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is between two parallel KFRP/ FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire/FRP. Finally this cable is completed with black or white LSZH sheath.Feature1, High tensile of the diameter 1.0mm steel wire/FRP meet the requirement of self-supporting and reducing the installation cost.
2, Two parallel KFRP/FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, Single mode G657A1/A2
6, (2.0±0.2)x(5.0±0.2)mm
7, Compliant with Telcordia GR-326-CORE specificationApplicationOutdoor Drop Cable suitable for aerial application. Low bending Cable suitable for Indoor Application

FIBRE COUNT	DIAMETER (mm) Nominal	WEIGHT (Kg./Km) Nominal	TENSILE STRENGTH (N)		BENDING RADIUS (mm)		TEMPERATURE RANGE (IEC 60794-1-2-F1)
			Installation	Operating	Temporary	Permanent	Installation	Operating
1-8 Core Outdoor 1-8 Core Indoor	2.0 X 5.0 mm 2.0 X 3.0 mm	20 8	130 40	50 20	30 30	50 50	-20° to +70° C	-40° to +70° C

Production Flow
SINET, A PROFESSIONAL MANUFACTURER OF FIBER CABLES*FTTH DROP CABLE*INDOOR FIBER CABLE
*OUTDOOR FIBER CABLE*DIELECTRICAL FIBER CABLE
Packaging & ShippingCompany ProfileExhibitionCertificationsFAQ1. What' s our main product?
SINET dedicated to the developing, production, marketing of the Network cable, Fiber Optic Cable. Indoor/ Outdoor Patch Cord, Communication cable, and so on.
2. Do you provide samples? Is it free or extra?
Some of low value samples can be free for you, but you need pay for the express cost.
3. Can i negotiate the prices?Yes, we may consider discounts for multiple container load of mixed goods.
4. Can you produce according to the samples?Yes,we can produce by your samples or technical data.
5. How can i get your catalogue and price list?Please let us know your email or contact us from website directly for our catalogue and price list.
6. Do you provide OEM service?Yes, We supply OEM&ODM service.we can print your logo or label on the products or on the box. 7. Shipping& Delivery
For large orders:by sea(LCL or FCL)For small orders:by sea(LCL), by air or by courier services, any of which is optional.

---
