Sf8005s Wood Lumber Multi Heads Trim Saw with CE Certification

Product Description

SF8005S Wood Lumber Multi Heads Trim Saw with CE Certification Product Description

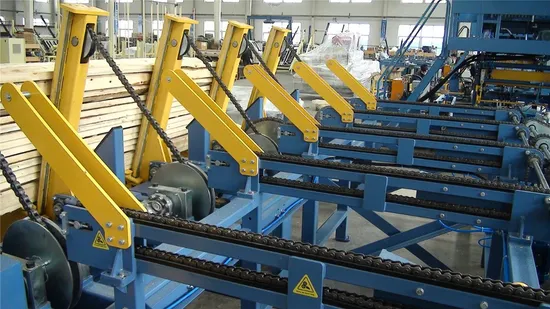

Consist with automatic feeding system, multi head trim saw machine, and control panel, total space 7*6.2*2m, total weight 9240kg.
Feeding system can load wood package 6000*1300*1300mm.
Saw machine each head distance is adjustable manually with hand crank, each head can lift alone (when you no need to use it can lift it), our stadnard model with 5 heads, can customize to 3-8pc heads as your requirements. It's a high speed heavy duty multi head trim saw machine.

Our stadard model features 5 diameter circular saws, set at either equal or various distances from each other, depending on the application at hand. Each saw head can easily be positioned independently using a lockable saw head positioner. As boards are fed in laterally, these saws cut them individually into shorter pieces all at once.
Functions
1) 2-8 sawing heads, 1st head is fixed, other heads are movable.
2) Frequency control working speed, adjust in the control panel.
3) One operator required to operate the machine.
4) Heavy-duty steel construction.
5) 450*30mm diameter, 120 teeth circular saw blades.
6) Each saw is powered by a 5.5kw electric motor.
7) 24pc Chain conveyor dogs draw material evenly into saw to be cut.
8) Material can be up to 120mm thick, as short as 500mm long, and up to max. 6000mm length.
9) 430mm wide belt conveyor collects and discharges waste and end block material.
10) 430mm wide belt conveyor discharges product to either the left or right of machine can decide from the control panel.
11) Completely tested before delivery, can share testing video with you. Product Parameters

Model	SF8005
Cutting length	500-6000mm First saw blade is fixed and max. Cutting off length 90mm Max. Distance between first saw blade and last saw blade is 5000mm
Cutting thickness	Max. 120mm (for 1 piece wood) Max. 60mm (for multi pieces wood)
Feeding block height	60mm
Cutting width	10-400mm
Feeding speed	Max. 6m/min Frequency control
Out-feeding speed	Max. 60m/min Frequency control
Productivity	10pc/min
Cutting accuracy	±1mm
Saw kerf	4mm
Saw blade diameter	450mm*30mm*120T

Detailed Photos
Control panel

Simple control with few buttons, every sawing head control separately.Convenient for workers to learn the operation quickly.
Saw blades
Use 450mm diameter saw blade, and equipped with safety cover better for dust collection.
Belt conveyor
Out-feeding speed can be 60m/min, out-feeding direction is adjustable.
Hand crank to adjust sawing heads distance
Heavy duty design, thus ensure smooth cutting.
Related Products

SF7013	Double Heads Notcher
SF7030	Wood Pallet Chamfer Machine
SF7041	Pallet Round Corner Cutter Machine
SF6060	Wood Cross Cut Off Saw
SF6021	Wood Double Heads Trim Saw Machine
SF8005	Multi Heads Trim Saw

Company Profile
Our CompanyHICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback.
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9.We have many CE certifications, EPR certifications, ISO certification and product patents.
10.Our Packaging & Shipping
11.Our after-sale service
1. We respect your feed back after receiving the goods.
2. Tracing the working condition by email per month.
3. 24 hours technical support by email, call, video.
4. English CD and manual for machine using and maintainance.
5. Whole machine one year warranty.
6. Whole life warranty.
7. Engineers available to serve and train overseas, but your side should pay all the expense.
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. All cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1) Technical support by phone, email or WhatsApp/Skype around the clock.
2) Friendly English version manual and operation video.
3) Engineer available to service machinery overseas.
5. Can you customized the machine?
Our machines can be customized made according to buyers' request.
6. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like edge banding machine, CNC router, drilling machine, saw machine, roller coater, spraying machine, membrane press can be provided as well.
7. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian. etc.

---
