International 1408 Channels Imu External Battery Land Surveying Equipment Gnss Rtk E-Survey E600 Unistrong G970II PRO

Product Description

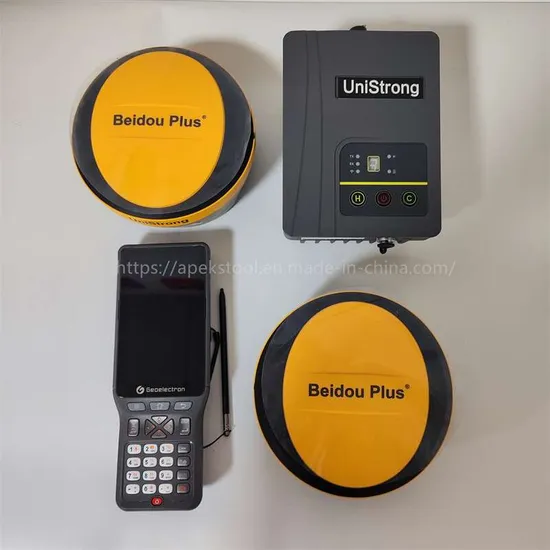

Product Description G970II pro supports GPS, GLONASS, BDS, GALILEO and other systems to receive multi-frequency signals. The build-in "Lyra" baseband chip is able to provide more channels. The receiver supports "Atlas" L-Band signals and can achieve centimeter-level positioning. In addition, a new combination antenna is used to integrate GNSS, WiFi, Bluetooth and 4G to perform better in complex environments. G970II pro upgraded to use P40 hemisphere board to get more channels.

Specifications

GNSS	Channels	800
	Signals	BDS: B1, B2, B3
		GPS: L1CA, L1P. L1C, L2P, L2C, L5
		GLOASS: G1,G2, P1, P2
		GALILEO: E1BC, E5a. E5b
		QZSS: L1CA. L2C. L5, L1C
		SBAS: L1CA, L5;
		L-Band
Accuracy	Static	H: 2.5 mm±1ppm , V: 5 mm±1ppm
	RTK	H: 8 mm±1ppm, V:15 mm±1ppm
	DGNSS	<0.5m
	ATLAS	8cm
System	Initialization Time	8s
	Initialization Reliable	99.90%
	Operating System	Linux
	Merrory	8GB, support expanable MisroSD
	Wifi	802.11 b/g/n
	Bluetooth	V2.1+EDR/V4.1Dual,Class2
	E-Bubble	support
	Tilt Survey	IMU Tilt Survey 60°,Fusion Positioning/400Hz refresh rate
Power	Battery Capacity	7. 2v, 24. 5wh(2 Batteries Standard)
	Life Timer	Static: 15h Rover: 12h
	Extemal Power Source	9-18V DC, Overvoltage Protection
Environmental	Operating Temperature	-30ºC+ 65ºC
	Storage Temperature	-40ºC . + 80ºC
	IP Dearee	IP67
Mechanical	Dimensions	Φ156mm×H76mm
	weight	1.2kg
	Power / Data Connector	1 TNC radio antenna . 1 5 PIN( power + RS232 ) -7PIN ( USB+RS232)
	Keypad	1 power button
	Status Indications	4LED indicator

Package
Company Profile Shanghai Apekstool was founded and based in Shanghai, specializing in the manufacturing and sales of Surveying equipment. We are dedicated to being a professional provider for survey equipment. Our goal is to provide the best products and excellent service to our customers all over the world.We have been involved in the geographic mapping industry for 10 years. We supply all products with reasonable prices and real-time support upon our own professional experience and high-quality supply chain. Like gnss rtk, total station, theodolite, auto level, rotary laser level, laser level and surveying accessories. We have sold to more than 156 countries and build our stable market.We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save so much time for communication. Our business is growing and we invite you to be part of the success.
Customer Case
Multi brand GNSS We focus on Hi target, CHCNAV, EFIX, FOIF, STONEX, SOUTH , KOLIDA ,RUIDE, Unistrong, E-survey GNSS, Geomax , Sunway, Stonex, Hi target and Kolida total station. Including surveying accessories pole , tripod, tribrach, prism and leveling staff.

---
