Factory Direct Sales Hydraulic Punching and Shearing Machine

Product Description

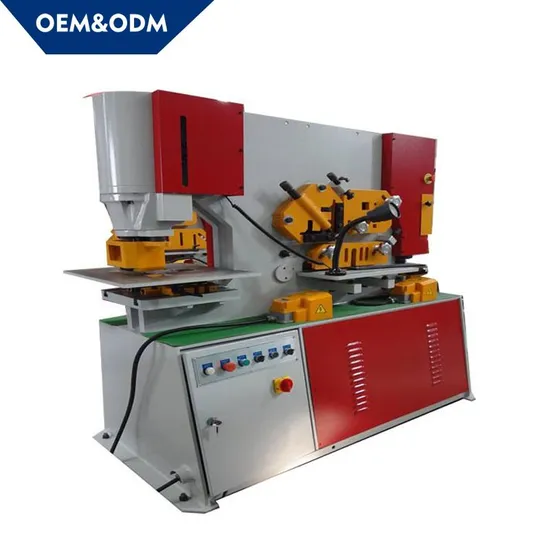

Combined Punching, Shearing and Bending Machine Multi-Functional Machine
Machine Introduction:
Q35Y Series hydraulic combined punching&shearing machine can cut and punch all kinds of materials,
such as plate, square bar, angle, round bar, channel and so on.
VASIA Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry.
This profitable machine will serve any grueling fabrication shop for decades to come.
This machine is typically in stock for quick delivery.
1.Punching,
Full range of universal punches and dies are available.
unique style allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation.
large two piece gauging table with rulers and stop as standard fittings.
Quick change coupling nut and sleeve for rapid replacement of change.
2.Shearing,
Round and square bar shear has multiple holes for a variety of sizes.
Adjustable hold down device for round/square bar,channel/beam cutting.
Large strong guarding for max safety.
The angle shear has the ability to cut angle at 45°both top and bottom leg.
This gives the operator the ability to make a picture frame corner for perfect welds.
Diamond shaped blade for quality cuts that is minimal material lost and deformity.
Easily adjustable hold-down device for accurate plate cutting.
Large 15″squaring arm with inlaid scale.
Special anti-distorted blade for quality cutting.Lower blade has four usable edges.
There is screw allow for gap adjust no shim needed.
3.Notching,
Unique design allows for cutting of angle and flat bar.
Electrical interlock safety guard and three gauging stops for precise positioning.
The notching section of this hydraulic ironworker is perfect for notching out metal plate,
angle iron and much more.
The notching station also has an oversized table with material stops.
This section of the machine can also be outfitted with the optional vee notcher.
4.Bending,
Also bend the plate below 500mm.
All the components of Machine are of the highest quality in their safety, function, capability and maintenance.
Main Technical Parameter:

Model	Q35Y-16 ( IW-60 )	Q35Y-20 ( IW-90)	Q35Y-25 (IW-110)	Q35Y-30 ( IW-140)
Working pressure(KN)	600	900	1100	1400
Max. cutting thickness(mm)	16	20	25	26
Max. cutting length(mm)	400	480	600	600
Tensile strength of sheet metal (N/mm²)	≤450	≤450	≤450	≤450
Shear angle(deg)	7	8	8	8
Stroke of ram(mm)	80	80	80	80
(stroke times)(min)	8	8	8	8
Depth of throat(mm)	300	355	400	600
Max .Capacities(mm)	25×16	30×20	35×25	38×28
Main motor(KW)	4	5.5	7.5	11
Length of machine tool(mm)	1650	1950	2355	2680
Width of machine tool(mm)	800	900	980	1060
Height of machine tool(mm)	1780	1930	2100	2350
Weight of machine tool(kg)	1900	2600	4800	6800
PUNCHING METRIC(mm)
Max. Capacities	25×16	30×20	35×25	38×26
Max. Stroke Length	80	80	80	80
Throat Depth Standard	305	355	400	600
Working Height	1030	1084	1142	1209
SHEARING
Flat Bar	250×16	330×20	300×25	355×30
Alternative	400×8	480×10	600×16	600×20
Blade Length	410	485	620	610
Working Height	890	894	891	897
ANGEL CUTTING
At 90°cut	125x125×12	140x140×12	160×160x14	200x200×12
At 45°Mitre	70×10	70×10	70×10	70×10
Working Height	1130	1139	1200	1220
SECTION CUTTING
Round / Square Bar	45	50	60	65
Channel / I bar	130×65	160×88	200x100	280×122
T bar	90×12	90×12	90×12	90×12
NOTCHING
Material Thickness	10	13	14	16
Width	57	57	57	57
Depth: Vee -Rect.	60-90	60-90	60-90	60-90
Working Height	890	883	886	898

---
