Product Introduction

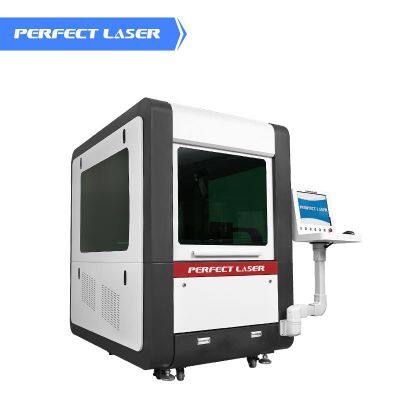

Perfect Laser specializing in the production of various laser cutter and engraver. In order to meet the market processing needs of new and old customers, Perfect Laser recently developed a small scale cheap laser cutting machine: model PE-F 6040 6060.
Small Scale Fiber Laser Cutter is suitable for the small metal cutting, we have the 600*400mm and 600*600mm working area for customer. This kind of small laser metal cutting machine is not only save the space to customer, but also save the cost and the use ratio. The appearance of the fiber laser cutter is very small and easy to move. At the same time, the small laser metal cutting machine with the high precision and fast speed. No consumable, maintenance-free and has long life are the most advantages of the fiber laser cutter. All in all, this small laser metal cutting machine is the best choice for cutting small metal requirement customers.
Product Features
1. Low operation cost: The power consumption of the metal sheet cutting machine is only 70-80% of Co2 laser.
2. High cutting speed: The speed of the metal sheet cutting machine is 2-3 times faster than YAG or Co2 laser.
3. High cutting accuracy: The finest laser beam of the fiber laser cutter is up to 0.01mm.
4. Low maintenance: This kind of fiber laser cutter is almost totally free of maintenance.
5.The small laser metal cutting machine is adopted advanced Germany technology, ensure the possess of high tech in the world.
6.With advanced optical system: To ensure good laser beam quality can strongly improve the laser power and laser beam quality.
7.With dynamic auto-focus system: To keep the same distance between the metal sheet and laser head. So that the fiber laser cutter realized the accuracy of cutting effect.
8.With pre-run function: To simulate the laser cutting path, Pre-run the cutting path in advance, ensure finding the precise cutting position for the fiber laser cutter.
9.With red light pointer: As the laser beam is in-visible, we adopt red light pointer to indicate the real position of the laser beam make cutting more accurate.
10.With high mirrors and lens cooling technology: All mirrors and lens is cooled by water. Takes the mirror heat during working. Prolong it’s lifetime. Save future operation cost.
11.With auto oil-filling system.
Application
Applied Materials: This kind of metal sheet cutting machine is widely applied in carbon steel cutting, mild steel, stainless steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials.
Applied Industry: This kind of metal sheet cutting machine is widely applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
Technical Data
Model
| PE-F4040
| PE-F6040
| PE-F6060
|
Laser type
| Fiber laser
|
Laser power
| 1000-3000W
|
Laser technique
| Germany technology
|
XY axis processing format
| 400*400mm
| 600*400mm
| 600*600mm
|
Laser source
| Germany imported fiber laser source
|
Running speed
| 10-35m/min
|
X/Y axis positioning accuracy
| ±0.03mm
|
X/Y axis repeated positioning accuracy
| ±0.02mm
|
Minimum cutting line width
| 0.05mm
|
Laser wavelength
| 1080nm±5
|
Modulation frequency
| 5000Hz
|
Fiber length
| 15m
|
Cooling method
| Double temperature and double control water cooler
|
Control system
| Perfect Laser optical fiber cutting control software
|
Positioning
| Red light
|
Overall power consumption
| ≤15KW
|
Service voltage
| 380V,50/60Hz
|
Maximum load of table
| 100KG
|
Transmission mode
| Double drive precision screw+linear guideway
|
Drive Mode
| Servo motor
|
Compatible File
| AUTOCAD/CORELDRAW/PLT/DXF/BMP/AI etc
|
Focusing Method
| Automatic focus
|
Control Mode
| Off-line motion control
|
>>
