Product Description
Product Description

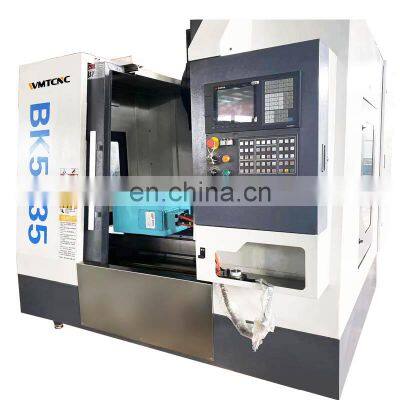

Product DescriptionPerformance characteristics:1. This machine has the functions of machining keyways, teeth, and ploughing planes and forming surfaces.2. The machine has high power, strong cutting force, good rigidity, high cost performance, long service life, and can be widely used in machine tool and automobile manufacturing, various mechanical, electrical and aerospace industries.3. It is an ideal equipment for processing keyways of various materials.SpecificationunitBK5035The maximum length of rammm350Ram adjustment strokemm200Number of ram movementsn/min0-70working desk sizemm750x510Table travel (X, Y)mm400x420The distance between the axis of the tool bearing hole and the forearm of the columnmm625The distance between the end face of the cutter head support hole and the tablemm700X direction motor torque(N.M)10Y direction motor torque(N.M)15Fast-movingX (m/min)5Y(m/min)5Ball screw (X)FFZD3205-3/P4Ball screw (Y)FFZD3205-3/P4main motor powerKW5.5Machine tool weight (about)KG3400Package dimensionsmm2600/2300/2500Details ImagesCompany ProfileProfessional ServiceCustomers' FeedbackFAQQ1: How is the warranty?A1: Warranty time is 13 months after BL date.Q2:Can we visit your factory before order?A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3:Do you have a stock?A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4:What’s the MOQ?A4:One set only.Q5:How about your quality?A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.Q6:Do you have professional engineers?A6:Yes.we have professional engineers and designers. We can provide OEM services.Q7:Can you provide customized machines?A7:Yes, we can design and manufacture according to your specific requirements.
Company Profile
Jingjiang Fuji Technology Co., Ltd.
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
