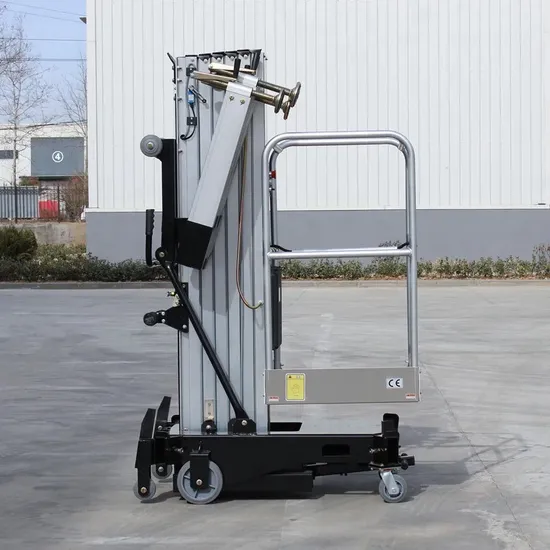

Mobile Trailer Aluminum Double Mast Lift Platform Hydraulic Mobile Work Platform Vertical One Man Lift

Product Description

Product Description
ZTCL brand aluminum alloy lift platform with high strength and high quality aluminum alloy materials.With the advantages of beautiful appearance, small size, light weight,lifting balance, safe and reliable. It's insurance platform wearing wire rope and safety protection device. It can be operate, widely used in factory,hotels,restaurants,airport,station,exhibition hall and other places. It can pass through the general and lift, very convenient to use.
Product Parameters

Model		ZTGTWY1-5	ZTGTWY1-6	ZTGTWY1-8	ZTGTWY1-9	ZTGTWY1-10	ZTGTWY1-12
Working height(m)		6.7	8.2	9.8	11.2	12.4	14
Platform height(m)		4.7	6.2	7.8	9.2	10.4	12
Load capacity(kg)		150	150	150	150	136	120
Occupants		1	1	1	1	1	1
Platform size(m)		0.67*0.66	0.67*0.66	0.67*0.66	0.67*0.66	0.67*0.66	0.67*0.66
Height(m)		1.99	1.99	1.99	1.99	1.99	2.68
Width(m)		0.74	0.74	0.74	0.74	0.74	0.81
Length(m)		1.24	1.24	1.36	1.4	1.42	1.46
Outrigger coverage(m)		1.7*1.7	1.7*1.7	1.6*1.6	1.7*1.7	1.9*1.7	2.3*1.9
Weight (kg)	AC power	300	320	345	365	385	460
Weight (kg)	DC power	335	355	380	400	420	495
AC power		110v/220v/380v	110v/220v/380v	110v/220v/380v	110v/220v/380v	110v/220v/380v	110v/220v/380v
AC Motor		0.75kw	0.75kw	0.75kw	0.75kw	0.75kw	0.75kw
DC power		12v	12v	12v	12v	12v	12v
DC motor		1.5kw	1.5kw	1.5kw	1.5kw	1.5kw	1.5kw
Charger		12V/15A	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A

Detailed Photos
Packaging & Shipping

FAQ
Q1. What about the delivery time?
Answer: It usually takes about 10 working days after we receive the deposit.
Q2. What kind of payment do you support?
Answer: T/T, L/C, West Union, T/T is usually.
Q3. How to proceed an order for the lift?
Answer: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better.
Secondly, we send you our suggestions and quote according to the practical.
Q4. How to transfer the lift machine?
Answer: It is usually shipped by sea. Plywood package and LCL in a 20' container.
Q5. Is it OK to print my LOGO on the lift?
Answer: Yes. Please inform us formally before our production and send us your high pixel LOGO.
Q6. How can I get the after-sales service?
Answer: Contact with us if you have any question or need professional support. We will try to solve your problem in 24 hours, and arrange the delivery of spare parts in 48 hours.

---
