| MACHINE TOOL TYPE | CQ6280 |
| CAPACITY |
| Swing Over Slide | Φ800mm |
| Swing Over Cross Bed | Φ570mm |
| Swing in Gap | Φ1035mm |
| Length of Gap | 250mm |
| Center Height | 400mm |
| Distance Between Centers | 1500mm/2000mm/3000mm |
| Width of Bed | 400mm |
| Max. Section of Tool | 25mm × 25mm |
| Max. Travel of Cross Slide | 420mm |
| Max. Travel of Compound Rest | 230mm |
| HEADSTOCK |
| Spindle Bore | Φ105mm |
| Spindle Nose | D1-8
|
| Taper of Spindle Bore | Φ113mm(1:20)/MT5 |
| Spindle Speed Step | 16 |
| Range of Spindle Speed | 25~1600rpm |
| FEEDS AND THREADS |
| Leadscrew Pitch | Φ40mm×2T.P.I. or Φ40mm×12mm |
| Inch Threads Range | 7/16~80T.P.I. (54 kinds) |
| Metric Threads Range | 0.45~120mm (54 kinds) |
| Diametrical Pitches Range | 7/8~160DP (42 kinds) |
| Module Pitches Range | 0.25~60MP (46 kinds) |
| Longitudinal Feeds Range in Metric Lead Screw | 0.044~1.48mm/rev (25 kinds) |
| Longitudinal Feeds Range in Inch Lead Screw | 0.00165"~0.05497"/rev (25 kinds) |
| Cross Feeds Range in Metric Lead Screw | 0.022~0.74mm/rev (25 kinds) |
| Cross Feeds Range in Inch Lead Screw | 0.00083"~0.02774"/rev (25 kinds) |
| TAILSTOCK |
| Travel of Tailstock Sleeve | 235mm |
| Dia. of Tailstock Sleeve | Φ90mm |
| Morse Taper of Tailstock Sleeve | MT5 |
| MOTOR |
| Power of Main Motor | 7.5kW(10HP) |
| Power of Coolant Pump | 0.09kW (1/8HP) |
| DIMENSION AND WEIGHT |
| Overall Dimension | 321/371/471cm |
| (L×W×H) | ×123cm×167cm |
| Packing Size | 324/374/474cm |
| (L×W×H) | ×114cm×191cm |
| Net Weight | 2850/3050/3450kg |
| Gross Weight | 3180/3450/3980kg |

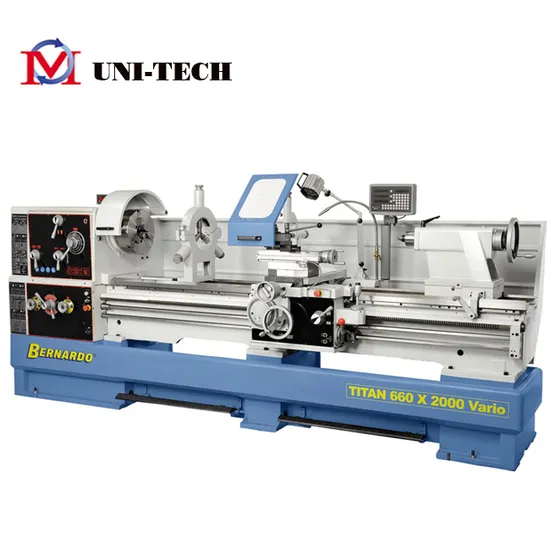

| Heavy duty gap bed lathe for metal STANDARD ACCESSORIES |
| 1. Three Jaw Chuck 2. Four Jaw Chuck | 3. Face Plates |
| 4. Steady Rest 5. Follow Rest | 6. Thread Chasing Dial |
| 7. Φ113mm(1:20)/MT5 Sleeve and MT5 Center |
| 8. Oil Gun 9. One Set Wrenches | 10. Operation Manual |
| Heavy duty gap bed lathe for metal SPECIAL ACCESSORIES |
| 1. Driving Plate 2. Quick Change Tool Post 3. Taper Turning Attachment |
