High Quality with Competitive Price Planer Milling CNC Machine Gantry Type Vm-1520nc

Product Description

CHINESE FAMOUS BRAND GOODA MACHINERY MANUFACTURING CO.,LTD
HOT SALE MODEL :VM-1520NC
High Precision CNC Planer Milling Machine
Both For Rough Milling And Finish-Milling to reduced processing time and save money.
TECHNICAL PARAMETER

VM-1520NC Specifications
No.	Item	Description	Specification
1	Model	GOODA CNC Planer milling machine	VM-1520NC
2	Travel	Max Cutting Length mm	2000
		Max Cutting Width mm	1500
		Max.cutting Height mm	550
		Column Size mm	1500
3	Worktable	Worktable size mm	1200*2000
		Max loading weight kg	6000
		T-slot Size mm	22*150*7
4	Spindle	Spindle power kw	15
		Spindle taper	BT50
		Cutter Size mm	250
5	Feeding speed	X axis mm/min	0-6000
		Y axis mm/min	0-6000
		Z axis mm/min	0-6000
6	Motor power	X ,Y,Z axis motor kw	3/3/3
		Chip remover motor kw	0.2
7	Dimension & weight	Machine area mm	5.8*3.5
		Machine weight kg	14000

Features and applications: Automatically measure, automatically processing and excellent surface performance. Maintain high accuracy for dimension, squareness and parallelism. One loading and one setting needed only is helpful to shorten the preparation time. Mainly used for pre-squared steel plate and non-ferrous metal materials for flat surface. Machine bed base with chip removal groove. Company Profile
We are the first manufacturer to produce the high-end CNC machine in China, who focusing on developing and supplying the high efficiency, high accuracy, and high quality of CNC Duplex Milling Machine, CNC Vertical Milling Machine,CNC Gantry Grinding Machine, 5-Axis High Speed Machining Center , CNC High Speed Saw Machine and CNC Chamfering Machine.
Our aspiration is to be flexible in implementing customer requirements, guarantee the high reliability of the milling machine, ensure that spare parts are available at short notice and facilitate the prompt availability of service engineers.

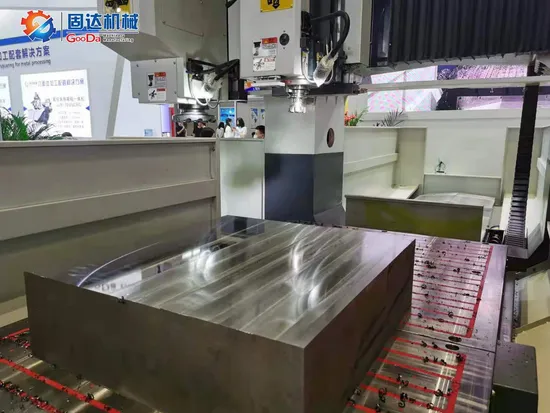

Milling Mould Sample by GOODA Machine
FAQ:
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI etc. It depends on your choice.
3.When is the delivery time?
Conventional Machines,We will delivery then within 30-45 working days after received your
deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
Packing: PE bag cover inside+ Plywood box + Steel beam frame.
5.How can I choose the most suitable machines ?
Please let us know your machining demand or machine size ,we can choose the best model
for you , or you can choose the exact model by yourself. You can also send us the products
drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
FOB, CFR,CIF or others terms are all acceptable.
7. What is your payment terms ?
Payment Terms : T/T 30% advance , 70% before shipment. After sales Service:
The benefits of GOODA maintenance contract (After sales 3 years): Basic requirement in a certified QS system Guarantee for the accuracy of the measuring and test results Calibration, maintenance and, if necessary, repair with just one visit Fixed prices with a clear breakdown of costs Preventive maintenance helps you avoid expensive faults and ensures a high level of quality that lasts The maintenance contract includes: Travelling time and expenses for our technician Maintenance and calibration work Small items required for carrying out the specified maintenance work Calibration with a corresponding maintenance and test report, allowing the results to be used to demonstrate compliance with national standards GOODA just need a chance to be your reliable Cooperative Partner
Your inquiry is welcomed at any time.

---
