Automatic Precision Computer Panel Saw CNC Woodworking Machine

US$25,000.00-35,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
DZ-2800
Power Type
Electric
Layout
Horizontal
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
Model Name
Dz-2800
Max.Cutting Height
120mm
Max.Cutting Size
100*100mm
Main Saw Blade Motor Power
15kw
Main Saw Blade Diameter
450mm
Main Spindle Diameter
75mm
Main Saw Blade Speed
4000r/Min
Scoring Saw Motor Power
2.2kw
Scoring Saw Diameter
200mm
Scoring Spindle Diameter
500mm
Scoring Saw Speed
6000r/Min
Pusher System Drive Motor
2.4kw
High Pressure Blower Motor
3kw
Working Air Pressure
6-7kg/Cm²
Overall Size
6900*4600*2180mm
Transport Package
Wooden
Specification
2800mm
Trademark
SOSN
Origin
China
HS Code
84659100
Production Capacity
20 Sets Per Month

Product Description

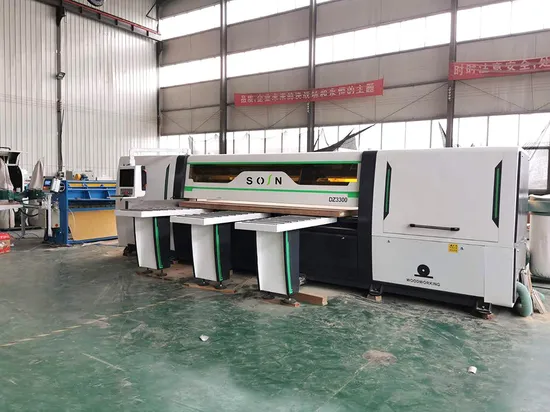

Automatic precision computer panel saw cnc woodworking machine
Technical parameter:
Model number DZ2800 DZ3300 DZ3800
Max.cutting length 2800mm 3300mm 3800mm
Max.cutting height 120mm 120mm 120mm
Min.cutting size 50*50mm 50*50mm 50*50mm
Main saw blade motor power 15kw 15kw 15kw
Main saw blade diameter 450mm 450mm 450mm
Main spindle diameter 75mm 75mm 75mm
Main saw blade speed 4000r/min 4000r/min 4000r/min
Scoring saw motor power 2.2kw 2.2kw 2.2kw
Scoring saw diameter ¢200mm ¢200mm ¢200mm
Scoring spindle diameter ¢50 ¢50 ¢50
Scoring saw speed 6000r/min 6000r/min 6000r/min
Pusher system drive motor 2.5kw 2.5kw 2.5kw
High pressure blower motor 3kw 3kw 3kw
Working air pressure 6-7kg/c m2 6-7kg/c m2 6-7kg/c m2
Saw carriage drive motor 3.8kw 3.8kw 3.8kw
Machine size 6200*6300*2000mm 6900*4600*2180mm 6900*7000*2180mm
Weight 5500kg 6200kg 6800kg

Features:
Computer beam saw is suitable for Standardized high-volume processing type of furniture factory,
Such as: wood-based panels, aluminum panels, plexiglass, MDF, MDF, ABS, PVC, solid wood and so on.
-- Working table base is covered with high pressure compact laminate which is hardly and smoothly surface to avoid panel surface scratch.
-- Rack and pinion drive system ensures fast machining for smooth motion.
-- Motor separation to ensure machining accuracy.
-- Automatically adjust the sawing stroke according to different sawing lengths, reduce the travel time and improve work efficiency.
-- The main saw and the slot saw are lifted independent, machine uses liner guides.
Main components:
-- Machine body is annealing, it is more stable.
-- Liner guides inner structure.
-- It is horizontal type structure, it can assure machine table.
-- YYC rack , 30 Taiwan liner guide.
Advantage IPC original, Delta PLC LCD system, Safe and reliable operation, editable management of sawing and sawing tasks, compatible with optimized sawing software.
-- Two independent motors
-- Main motor power 15KW,scoring saw motor power 2.2KW
-- Main saw diameter 450mm, scoring saw diameter 75mm
-- Saw seat adopts linear guide rail lifting, high precision and smooth operation
-- Drive system: Liming reducer and Japan servo motor.
Short board robot
2.4KW servo drive
saw blade is installed vertically, nut locking device, easy to assemble without adjustment;
Saw cutting to ensure accuracy and no chipping.
Pusher structure
-- 8 Grippers
High performance robotic servo feed clamp
--Precision servo drive position
--Automatic feeding, low labor intensity and high production efficiency.
Working table base is covered with high pressure compact laminate which is hardly and smoothly surface to avoid panel surface scratch.
Three in-feed floating tables are also covered with high pressure compact laminate with Teflon balls.
Safety steel cable on the surface of machine front cover when meet emergency situation happened.
Number of roller modules collocate in pusher area, panel saw roller sticks to avoid panel surface scratch.
The machine roller tracks under pusher position in the middle of grippers.
Every section probably will cause machine damage parts has connected sensors to avoid damage happen.

Delta PLC
Japan Servo Drive
OMRON switching
Schneider Electric
PVC Organ cover save space, Mainly used to protect the machine guide surface to prevent the erosion of sawdust, metal chips and coolant.
The functions are dust proof, anti-dust, anti-cooling liquid, etc., thus prolonging the precision life of the machine.

Note:
-- We guarantee the machine body for one year, three months for easy-broken parts.
-- Package: Standard export wooden cast package.
-- Delivery time: 30 working days after getting the deposit.(depends the quantity)
-- Payment: 30% the deposit by T/T, the balance 70% before the shipment.
If you have any need of this machine, please feel free to contact me :-)
