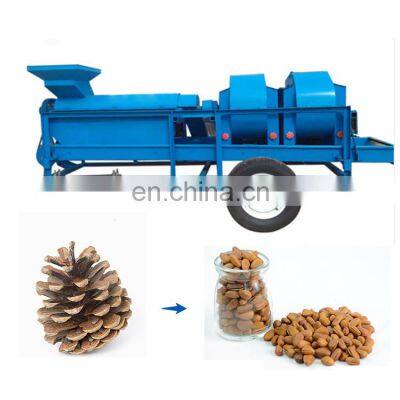

| Model | Pine nut thresher and cleaner machine | |
| SL-80 | SL-200 | |
| Power (KW) | 11.0~14.7 | 11.0~14.7 |
| Diesel engine(hp) | 15 | 15 |
| Dimension(mm) | 3230×750×1280 | 3230×750×1280 |
| Net weight(kg) | 350 | 380 |
| Shaft rotary speed(r/min) | 700~800 | 700~800 |
| Fan rotary speed(r/min) | 700~800 | 700~800 |
| Rotary drum type | Nail teeth type | Nail teeth type |
| Drum diameter (mm) | 310 | 310 |
| Drum length(cm) | 80 | 120 |
| Concave type | Grid type and round hole type | Grid type and round hole type |
| Separating and cleaning type | Screening and cleaning | Screening and cleaning |
| Fan type | horizontal type | horizontal type |
| Fan diameter(mm) | φ640 | φ640 |
| Upper layer screen size (mm) | 1500×500 | 1500×500 |
| Middle layer screen size (mm) | 1900×500 | 1900×500 |
| Lower layer screen size(mm) | 2880×500 | 2880×500 |
| Capacity(kg/h) | 400-600 | 600-800 |
