Product Details
Product Description
Product Description

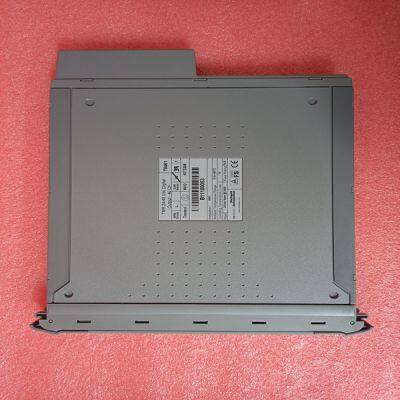

Brand:ICS TRIPLEX
Type:T8461
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
There are six LED indicators on the front panel of CI872 that indicate different states of the CI872 module including communication on the optical ports states. Technical Data Table 106. MOD5 Interface CI872 - LED indicators Designation/Color Function F(ault) / Red The red F(ault) LED indicates a fault condition on CI872. R(un) / Green The green R(un) LED indicates that CI872 is operational. RxTx1 / Yellow The yellow Rx/Tx1 LED is illuminated when receiving or transmitting a byte at the optical channel–Ch1. RxTx2 / Yellow The yellow Rx/Tx2 LED is illuminated when receiving or transmitting a byte at the optical channel–Ch2. Rx/Tx3/Yellow The yellow Rx/Tx3 LED is illuminated when receiving or transmitting a byte at the optical channel–Ch3. DUAL/Yellow The yellow DUAL LED is illuminated when CI872 is run in redundant configuration and a working partnership between the two CI872s is established. Table 107. MOD5 Interface CI872 - Technical Specification Item Value Type Fiber optic connection. Protocol MOD5-to-MOD5. Communication speed Full duplex at a speed of 500 Kbps.
Status indicators Running normally: Green. Exceptional fault: Red. Three traffic indicators – RxTx1, RxTx2 and RxTx3 - controlled by traffic pace: Flashing Yellow. Running in a redundant configuration: Yellow. Connectors Wavelength: 820 nm. Fiber size: 62.5/125 m multimode glass fiber. Connector type: ST - non threaded. Max nominal fiber damping including connectors: 11 dB. Current consumption (from CEX-bus 24VDC) Max 124 mA. Power dissipation Max 3.0 W. Protection Rating IP20 according to EN60529, IEC 520. Weight 500 g (700 g with package). Dimensions W 59 x H 185 x D 127.5 mm. (W 2.9 x H 7.3 x D 5.0 in).
>>
