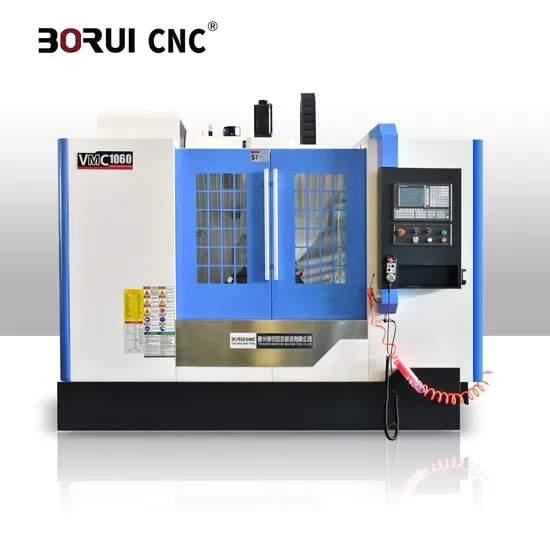

Vmc1060 Vertical Machining Center Vmc Machine Price

Product Description

Vmc1060 Vertical Machining Center Vmc Machine Price Product Description

This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of process.
The features of cnc maching center:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.

2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting

3.The pre tension precision ball screw drive

4.The high speed, high precision, high rigidity spindle unit

5.The design of oil-water separation

6.The intermittent automatic lubrication

7.Automatic scraping knife system
Product Parameters
The main specification:

CNC machining machines for sale message center	VMC1060	VMC1270	VMC1370
table size	1300*600mm	1360*700mm	1400*710mm
Max. table load	800KG	1000kg	1000kg
T slot qty-width*distance	5-18*120mm	5-18*122	5-18*152.5
spindle speed	8000r/min	8000rpm	8000rpm
spindle nose to table surface	180-780mm	150-750mm	150-800mm
Spindle center to Column surface	600mm	785mm	785mm
Spindle taper	BT40	BT50	BT50
Main motor power	11/15kw	11/15kw	11/15kw
Three-axis servo motor power	2.5/2.5/2.5kw	4/4/4kw	4/4/4kw
X axis travel	1000mm	1200mm	1300mm
Y axis travel	600mm	700mm	700mm
Z axis travel	600mm	600mm	650mm
X/Y/Z axis rapid feed	20/20/15m/min	24/24/18m/min	15/15/15m/min
Tool changer type Tools capacity	drum/ hat type (arm type optional ) 16/24	disc type 24	disc type 24
Max. tool length	250/350mm	350mm	350mm
Max.tool(kinfe) weight	8kg	15kg	15kg
Repeat positioning accuracy	±0.004	±0.004mm	±0.004mm
Net Weight	7000kg	105000kg	11000kg
Overall Dimension	3340*2800*2700mm	3800*3000*2650mm	3900*3060*2650mm

Standard Accessories:
1.The CNC system: FANUC 0i mate MD
2.The high quality castings: Resin sand casting
3.The spindle: Taiwan famous high speed spindle
4.The screw: HIWIN
5.The knife: The famous Taiwan bamboo hat knife.
6.The unclamping cylinder: Taiwan Shang product
7.The weight: Wuxi co Qing nitrogen balance
8.The bearing: Japan NTN
9.The Internal protection: Total protection

Optional Accessories:
1.M70B/M70A Mitsubishi
2.The CNC dividing head
3.NC rotary table
4.The chip cleaner
5.The taiwan famous brand manipulator knife storehouse
Details Display
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
