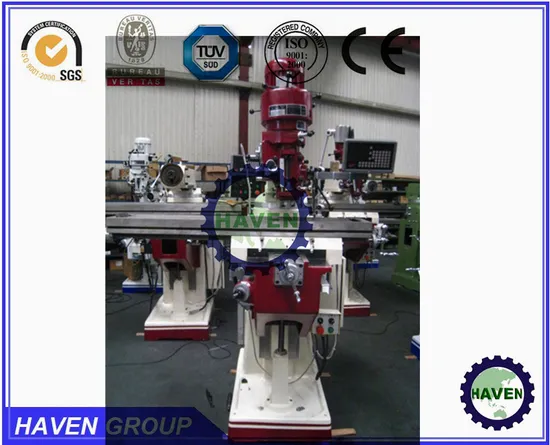

X6325D HAVEN Brand High quanlity Universal turret milling machine

Product Description

X6325D HAVEN Brand High quanlity Universal turret milling machine
WHY CHOOSE HAVEN BRAND MACHINE:
1) Hihg quality with competitive price
2) 15 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE)
6) 14 months quality warranty (after B/L date)
7) Over sea engineers available for problem shooting

Our Target: BRAND HAVEN
High quality;
Assured Delivery;
Vigorous innovation;
Efficient Cooperation;
Noblesse Oblige

item

unit

X6323A

X6323B

X6325

X6325A

X6325B

X6325C

X6325D

X6330

X6330A

X6333

X6333A

Table size

mm

230x1067;230x1246)

254x1270;254x1370;

305x1370;305x1500;

330x1370;330x1500;

Long travel

mm

650;840

850;950;

920;1000;

840;1000

Cross travel

mm

305

420

400

400

420

380

368

Vertical travel

mm

400

420

430

530

T-slot No. and size

3x16

Ram travel

mm

312

470

500mm

Distance from spindle nose to table surface

mm

0~415

0~405

0~350

0~450

Distance from spindle center to column

mm

170~482

140~609

108~760

Spindle hole taper

standard): R8;optional: ISO30 / ISO40

standard) ISO40

Spindle travel

mm

127mm

Spindle speed

Rpm

standard: shift grade

65~4500

standard: shift grade

65~4500

optional: variable)

65~4200

optional: variable

60~3750

Auto. quill feed

(three steps) : 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution

Spindle motor

HP

3

5

Head swivel

°

90

90

90

90

90

90

90

90

90

90

90

Head tilting

°

45

45

45

45

45

FIX

45

45

FIX

45

FIX

Dimension of package

one unit per case

mm

1400x1476x2030

1516x1550x2080

1566x1650x2080

1800x2016x2180

two units per case

mm

1450x1570x2080

1650x1750x2170

1720x1800x2175

1800x2280x2180

three unitsr per case

mm

1450x2180x2080

1650x2285x2235

Machine weight

kg

1100

1160

1550

1380

1420g

1590

1590

1700

1750

2300

2350

---
